Hydraulic Hose · Hydraulic Hose Assembly, 3/8” (-06) Hose, 3/8” (-06) Female 37° JIC Swivel x 3/8” (-06) Female 37° JIC Swivel , 3000 PSI Hose

06-06FJX-06FJX-022

06-06FJX-06FJX-022, Hydraulic Hose, Hydraulic Hose Assembly, 3/8” (-06) Hose, 3/8” (-06) Female 37° JIC Swivel x 3/8” (-06) Female 37° JIC Swivel , 3000 PSI Hose 3/8 Hose ID 22.00 inches Long

Product image
06-06FJX-06FJX-022 product image

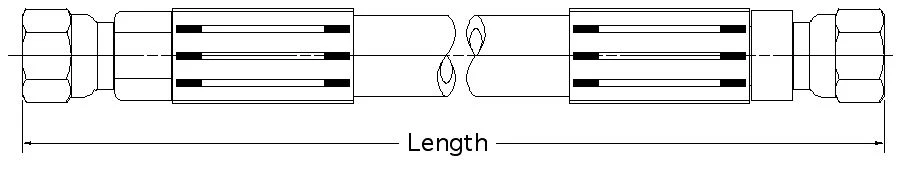

Dimension drawing 1
06-06FJX-06FJX-022 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$36.36 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Hose inside diameter3/8
Working pressure (psi)3000
Length22 in
Left end styleFemale JIC Swivel
Right end styleFemale JIC Swivel
Left end thread9/16-18
Right end thread9/16-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$36.36
2+$26.24
3+$23.29
4+$22.88
5+$22.63
10+$17.05
25+$15.05

Drawing dimensions

Hose ID3/8
Length22.00
SAE Spec of Hose100R17
Hose PSI3000
Left End StyleFemale JIC Swivel
Left End Size06
Left End Thread9/16-18
Right End StyleFemale JIC Swivel
Right End Size06
Right End Thread9/16-18

Lettered dimensions refer to the drawing for this part.

Product information

Hose Construction: SAE 100R17 (3,000 psi) Material: black, oil resistant Nitrile Reinforcements: braids of high tensile steel wire. Cover: black, oil and abrasion resistant, neoprene
