Hydraulic Hose · Hydraulic Hose Assembly, 3/8” (-06) Hose, 3/8” (-06) Male Pipe x 3/8” (-06) Male Pipe, 3000 PSI hose

06-06MP-06MP-030

06-06MP-06MP-030, Hydraulic Hose, Hydraulic Hose Assembly, 3/8” (-06) Hose, 3/8” (-06) Male Pipe x 3/8” (-06) Male Pipe, 3000 PSI hose 3/8 Hose 30.00 inch Length

Product image
06-06MP-06MP-030 product image

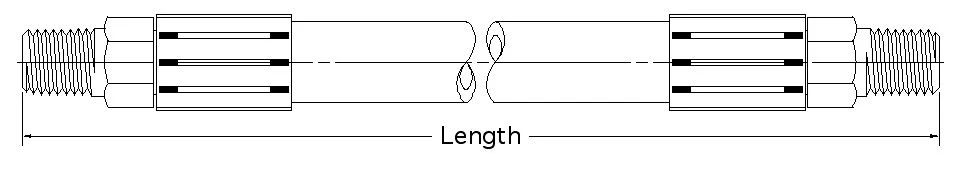

Dimension drawing 1
06-06MP-06MP-030 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$42.68 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Hose inside diameter3/8
Working pressure (psi)3000
Length30 in
Left end styleMale NPTF
Right end styleMale NPTF
Left end thread3/8-18
Right end thread3/8-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$42.68
2+$35.48
3+$31.71
4+$31.29
5+$23.98
10+$21.13
25+$19.65

Drawing dimensions

Hose ID3/8
Length30.00
SAE Spec of Hose100R17
Hose PSI3000
Left End StyleMale NPTF
Left End Size06
Left End Thread3/8-18
Right End StyleMale NPTF
Right End Size06
Right End Thread3/8-18

Lettered dimensions refer to the drawing for this part.

Product information

Hose Construction: SAE 100R17 (3,000 psi) Material: black, oil resistant Nitrile Reinforcements: braids of high tensile steel wire. Cover: black, oil and abrasion resistant, neoprene
