MCPHydraulic Hose · 3000 PSI
HH-10-R17
HH-10-R17, Hydraulic Hose, 3000 PSI 5/8 Price per Foot
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$0.74 per piece at 100+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 5/8 |
|---|---|
| Hose outside diameter | 0.98 |
| Working pressure (psi) | 3000 |
| Minimum bend radius (in) | 6.5 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 100+ | $0.74 |
| 250+ | $0.53 |
| 500+ | $0.47 |
| 1,000+ | $0.44 |
| 2,500+ | $0.38 |
| 5,000+ | $0.33 |
| 7,500+ | $0.33 |

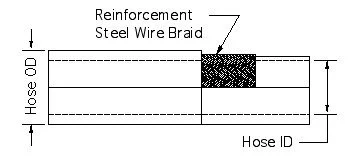

Drawing dimensions
| Hose ID | 5/8 |
|---|---|
| Hose OD | 0.98 |
| Max Pressure psi | 3000 |
| Max Burst Pressure psi | 12000 |
| Min Bend Radius (in) | 6.5 |
| # of Layer of Braids | 2 |
Lettered dimensions refer to the drawing for this part.
Product information
Pricing is PER FOOT.
Hose Construction: oil resistant rubber.
Reinforcement: one high tensile steel wire braid on the 1/4, 3/8 and 1/2” sizes, and two high tensile steel wire braids on the 5/8, 3/4 and 1.0” sizes.
Design: meets or exceeds requirements of SAE 100R17
Temperature Range: -40° F to +250° F
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
