MCPClevis Pins · Headed
103241-1
103241-1, Clevis Pins, Headed 5/16 inch Diameter 0.875 inch Under-Head Length 1045 Steel Plain
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.58 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | AISI 1045 Steel |
|---|---|
| Finish / plating | Plain |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.58 |
| 2+ | $5.08 |
| 3+ | $4.25 |
| 4+ | $3.79 |
| 5+ | $3.54 |
| 10+ | $2.26 |
| 25+ | $1.58 |
| 50+ | $1.30 |
| 100+ | $1.15 |
| 250+ | $0.77 |
| 500+ | $0.76 |
| 1,000+ | $0.70 |
Drawing dimensions
| Pin Diameter | 0.3125 |
|---|---|
| Under-Head Length | 0.875 |
| Head Diameter | 0.440 |
| Head Thickness | 0.100 |
| Cross-Hole Diameter | 0.141 |
| Under Head to Hole Center | 0.695 |
| Material | AISI 1045 Steel |
| Finish | Plain |
| Item envelope L × W × H (in) | 1 × 1 × 1 |
| Unit weight (lb) | 0.025 |
Lettered dimensions refer to the drawing for this part.
Product information

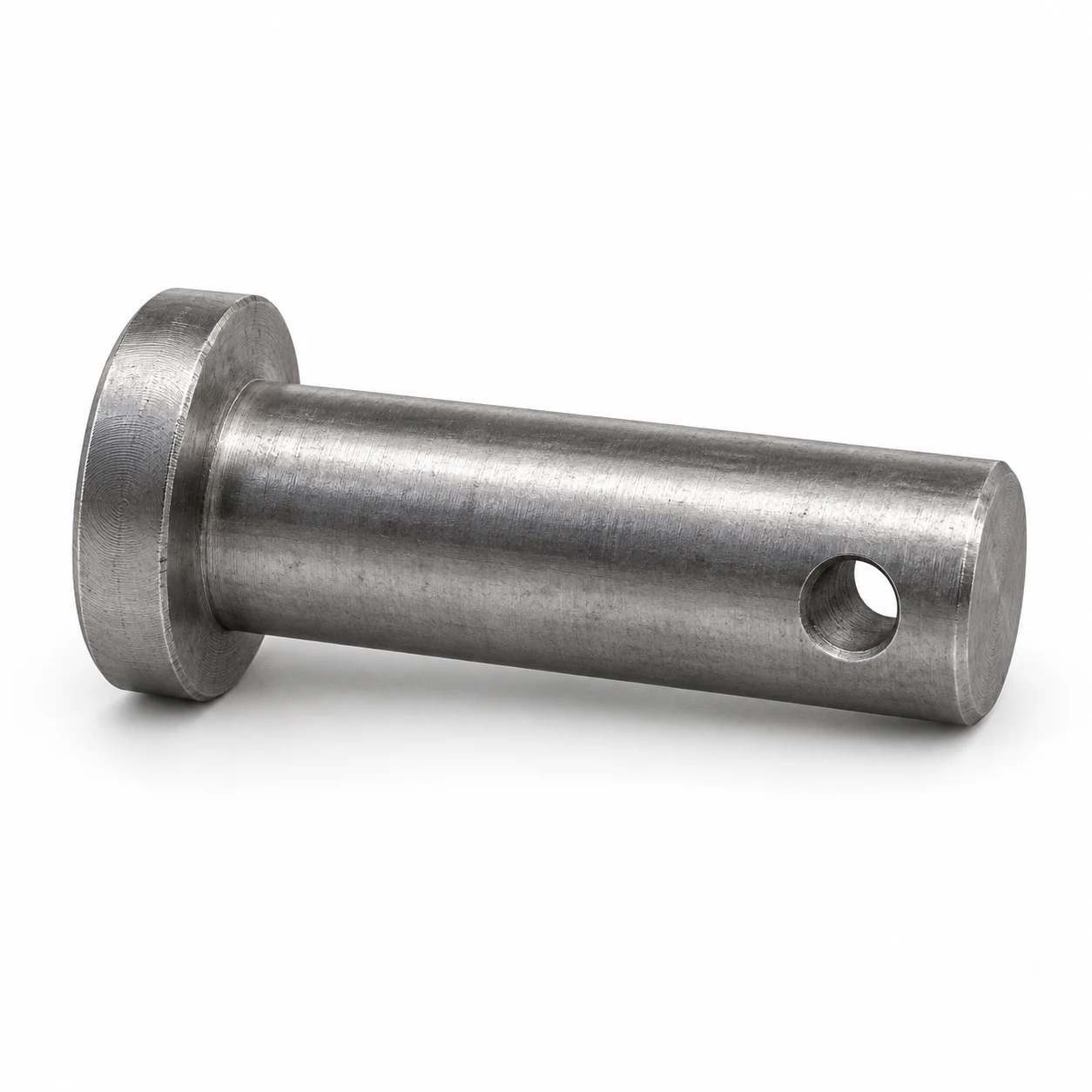

Headed clevis pin made from AISI 1045 steel with plain finish. Nominal shank diameter 5/16 inch (0.3125 inch); under-head length 0.875 inch. Head diameter 0.440 inch; head thickness 0.100 inch. Cross-hole diameter 0.141 inch, with its center 0.695 inch from the underside of the head. All dimensions are in inches. Catalog image is an illustrative rendering, not a product photograph or manufacturing drawing.
