Hydraulic Adapters · Union, Female, Swivel x 2, Pipe (NPSM)

1406-04-04

1406-04-04, Hydraulic Adapters, Union, Female, Swivel x 2, Pipe (NPSM) 1/4-18 11/16

Product image
1406-04-04 product image

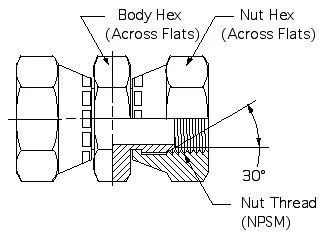

Dimension drawing 1
1406-04-04 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$6.74 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Nut thread1/4-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$6.74
2+$4.24
3+$3.40
4+$2.99
5+$2.74
10+$1.69
25+$1.28
50+$1.03
75+$0.88
100+$0.80

Drawing dimensions

Nut Thread1/4-18
Body Hex11/16
Nut Hex11/16

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
