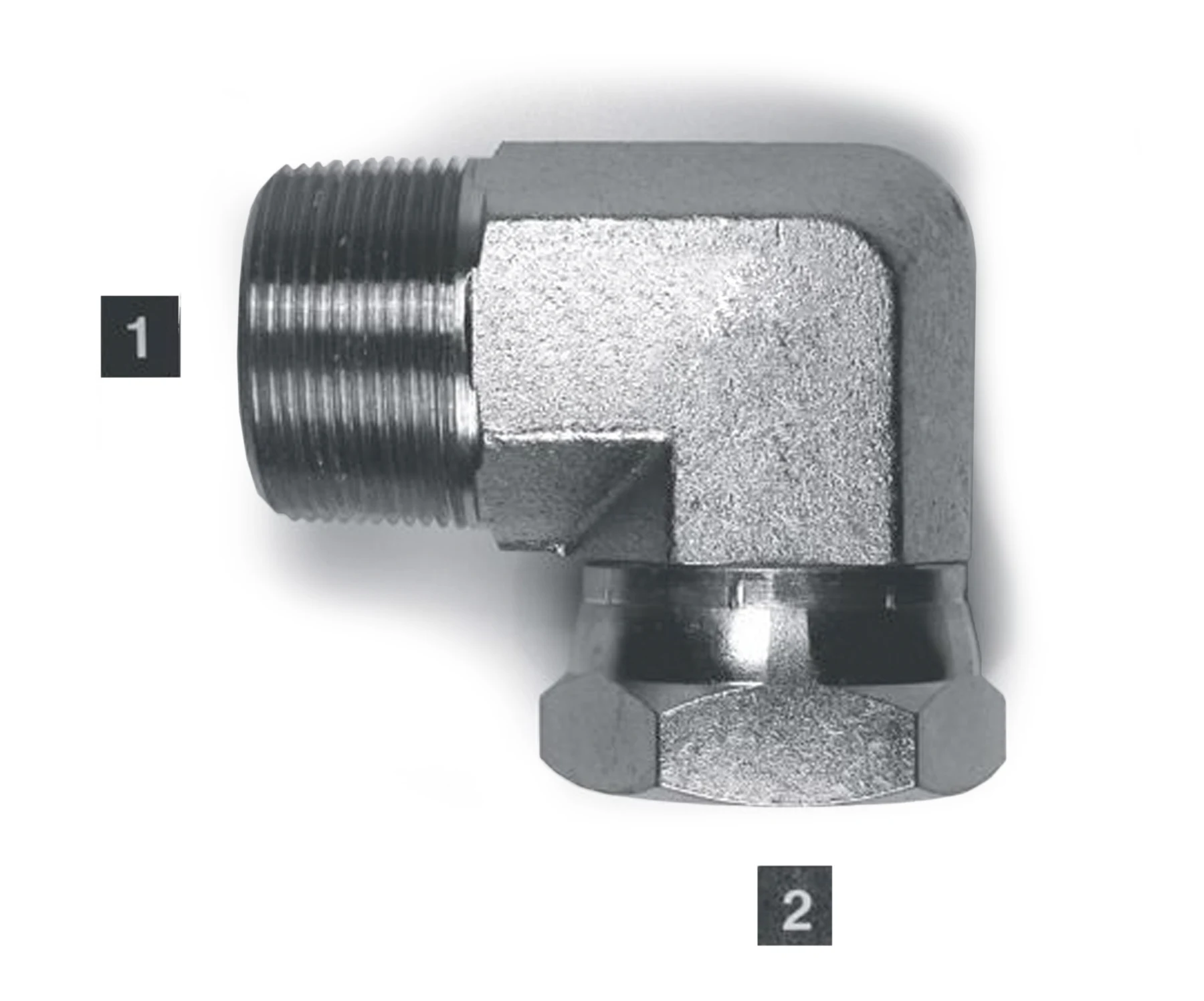

MCPHydraulic Adapters · Elbow, 90°, Male-Female, Swivel, Pipe (NPTF) - Pipe (NPSM)
1501-12-12
1501-12-12, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, Pipe (NPTF) - Pipe (NPSM) 3/4-14 3/4-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.81 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Body thread | 3/4-14 |
|---|---|
| Nut thread | 3/4-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.81 |
| 2+ | $4.31 |
| 3+ | $3.47 |
| 4+ | $3.06 |
| 5+ | $2.81 |
| 10+ | $1.75 |
| 25+ | $1.33 |
| 50+ | $1.08 |
| 75+ | $0.92 |
| 100+ | $0.84 |

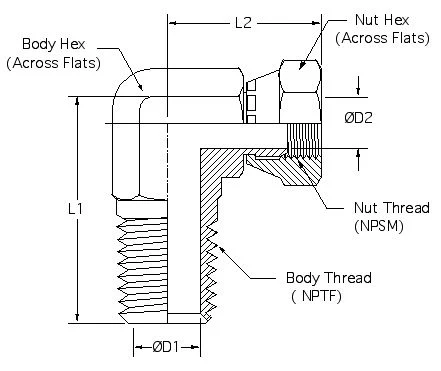

Drawing dimensions
| Body Thread | 3/4-14 |
|---|---|
| Nut Thread | 3/4-14 |
| Body Hex | 1 1/16 |
| Nut Hex | 1 1/4 |
| D1 | 0.719 |
| D2 | 0.640 |
| L1 | 1.59 |
| L2 | 1.65 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
