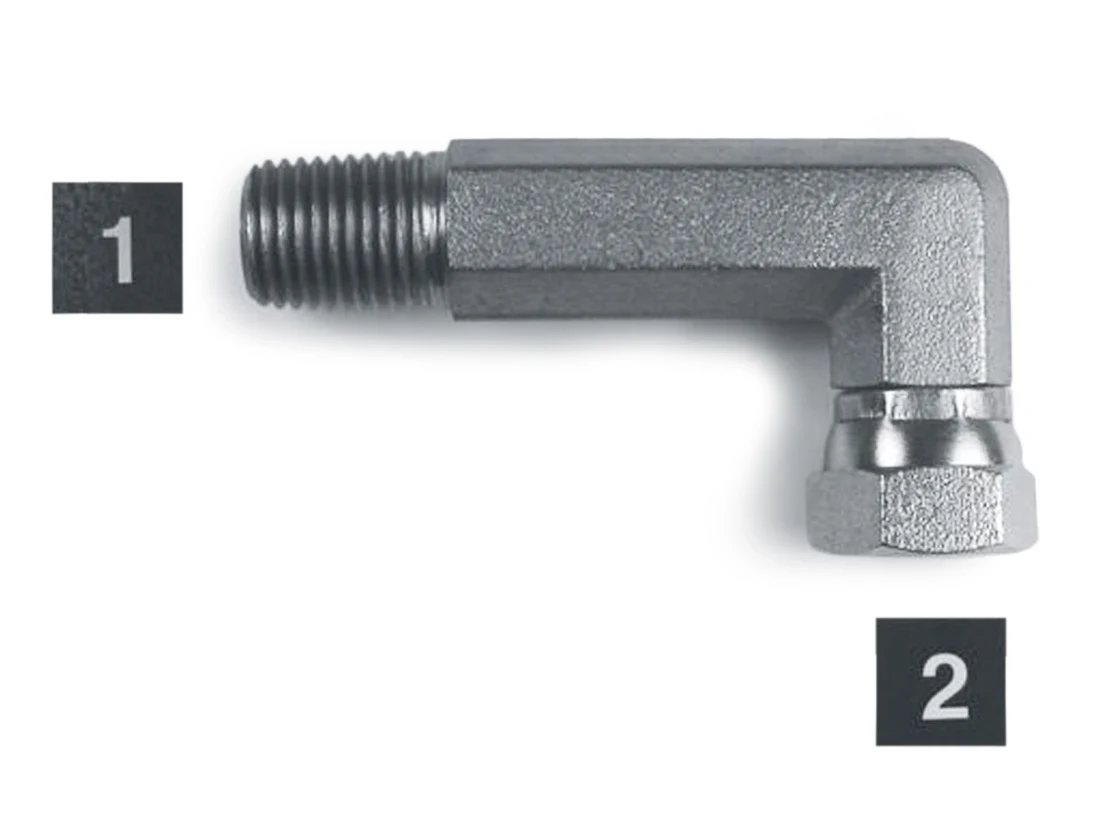

MCPHydraulic Adapters · Elbow, 90°, Male-Female, Swivel, Long, Pipe (NPTF) - Pipe (NPSM)
1501L-04-04
1501L-04-04, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, Long, Pipe (NPTF) - Pipe (NPSM) 1/4-18 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.93 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Body thread | 1/4-18 |
|---|---|
| Nut thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.93 |
| 2+ | $4.43 |
| 3+ | $3.60 |
| 4+ | $3.18 |
| 5+ | $2.90 |
| 10+ | $1.82 |
| 25+ | $1.39 |
| 50+ | $1.00 |
| 75+ | $0.97 |
| 100+ | $0.87 |

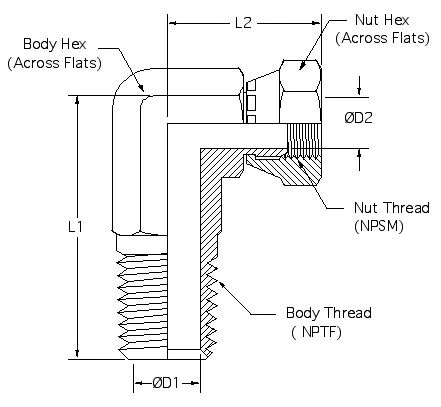

Drawing dimensions
| Body Thread | 1/4-18 |
|---|---|
| Nut Thread | 1/4-18 |
| Body Hex | 1 1/16 |
| Nut Hex | 11/16 |
| D1 | 0.261 |
| D2 | 0.221 |
| L1 | 2.25 |
| L2 | 0.98 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated.
