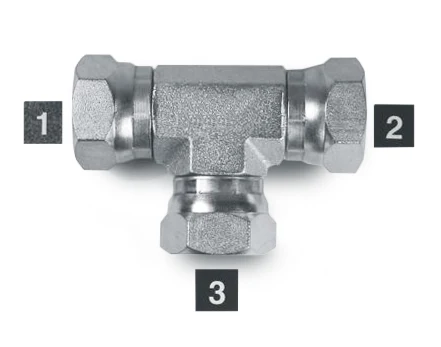

MCPHydraulic Adapters · Tee, Swivel x 3, Female, Pipe (NPSM)
1603-08-08-08
1603-08-08-08, Hydraulic Adapters, Tee, Swivel x 3, Female, Pipe (NPSM) 1/2-14 7/8
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.71 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nut thread | 1/2-14 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.71 |
| 2+ | $6.21 |
| 3+ | $5.32 |
| 4+ | $4.90 |
| 5+ | $3.54 |
| 10+ | $2.79 |
| 25+ | $1.94 |
| 50+ | $1.69 |
| 100+ | $1.27 |
| 250+ | $1.10 |
| 500+ | $1.02 |

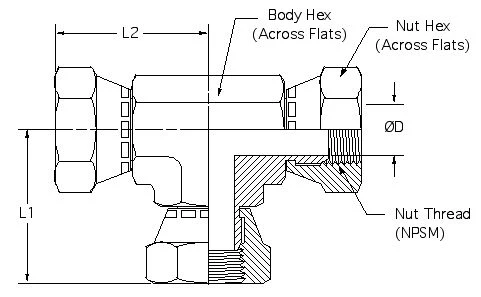

Drawing dimensions
| Nut Thread | 1/2-14 |
|---|---|
| Body Hex | 7/8 |
| Nut Hex | 1 |
| D | 0.469 |
| L1 | 1.36 |
| L2 | 1.36 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
