MCPHydraulic Adapters · Union, Male, JIC
2403-06-06
2403-06-06, Hydraulic Adapters, Union, Male, JIC 9/16-18 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.26 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.26 |
| 2+ | $2.76 |
| 3+ | $1.93 |
| 4+ | $1.51 |
| 5+ | $1.26 |
| 10+ | $0.76 |
| 25+ | $0.46 |
| 50+ | $0.36 |
| 100+ | $0.23 |
| 250+ | $0.16 |
| 500+ | $0.13 |

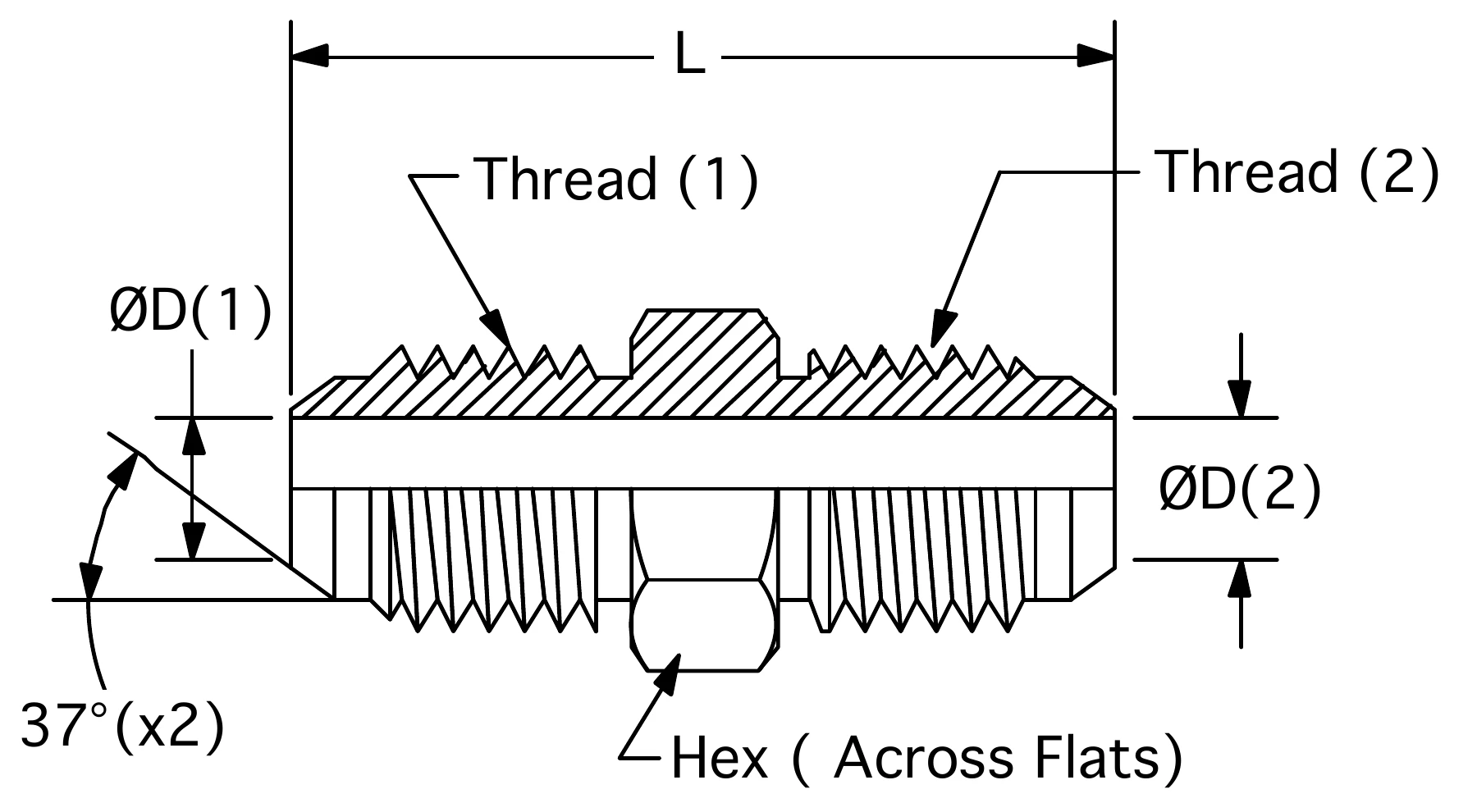

Drawing dimensions
| L | 1.41 |
|---|---|
| D(1) | 0.297 |
| D(2) | 0.297 |
| Hex | 5/8 |
| Thread (1) | 9/16-18 |
| Thread (2) | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
