MCPHydraulic Adapters · Union, Male, JIC-Pipe (NPTF)
2404-04-04
2404-04-04, Hydraulic Adapters, Union, Male, JIC-Pipe (NPTF) 7/16-20 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.35 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.35 |
| 2+ | $2.85 |
| 3+ | $2.02 |
| 4+ | $1.60 |
| 5+ | $1.35 |
| 10+ | $0.85 |
| 25+ | $0.55 |
| 50+ | $0.34 |
| 100+ | $0.27 |
| 250+ | $0.21 |
| 500+ | $0.16 |

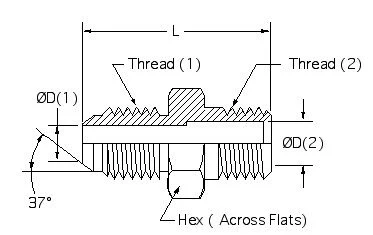

Drawing dimensions
| L | 1.42 |
|---|---|
| D(1) | 0.172 |
| D(2) | 0.172 |
| Hex | 9/16 |
| Thread(1) | 7/16-20 |
| Thread(2) | 1/4-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 300 series stainless steel
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
