Hydraulic Adapters · Union, Male, Long, JIC-Pipe (NPTF)

2404L-06-06

2404L-06-06, Hydraulic Adapters, Union, Male, Long, JIC-Pipe (NPTF) 9/16-18 3/8-18

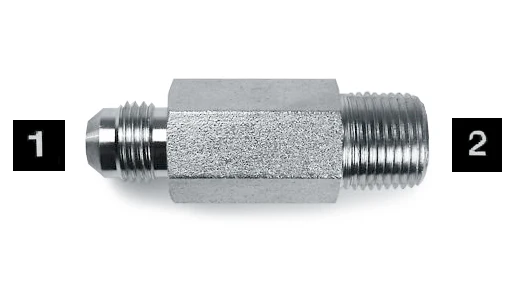

Product image
2404L-06-06 product image

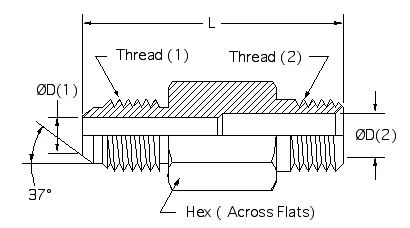

Dimension drawing 1
2404L-06-06 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.57 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread9/16-18
Connection 2 thread3/8-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.57
2+$6.07
3+$5.17
4+$4.76
5+$3.44
10+$2.70
25+$2.11
50+$1.62
100+$1.22
250+$1.07
500+$1.00

Drawing dimensions

L2.50
D(1)0.297
D(2)0.406
Hex0.812
Thread(1)9/16-18
Thread(2)3/8-18

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
