Hydraulic Adapters · Union, Male, Long XL, JIC-Pipe (NPTF)

2404LL-04-02

2404LL-04-02, Hydraulic Adapters, Union, Male, Long XL, JIC-Pipe (NPTF) 7/16-20 1/8-27

Product image
2404LL-04-02 product image

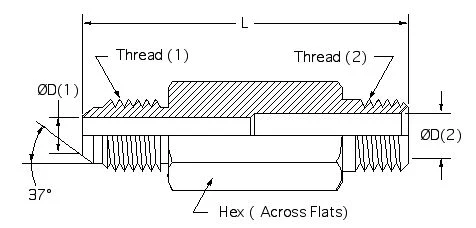

Dimension drawing 1
2404LL-04-02 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.57 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread7/16-20
Connection 2 thread1/8-27

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.57
2+$6.07
3+$5.17
4+$4.76
5+$3.44
10+$2.70
25+$2.11
50+$1.62
100+$1.22
250+$1.07
500+$1.00

Drawing dimensions

L2.56
D(1)0.172
D(2)0.188
Hex0.500
Thread(1)7/16-20
Thread(2)1/8-27

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
