MCPHydraulic Adapters · Union, Male-Female, JIC-Pipe (NPTF)
2405-02-02

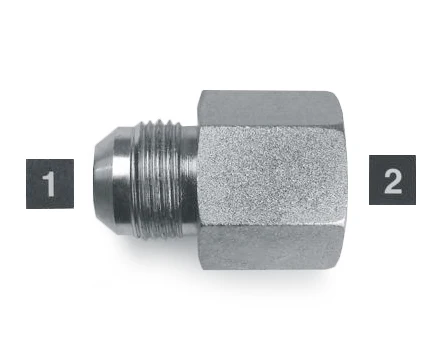

2405-02-02, Hydraulic Adapters, Union, Male-Female, JIC-Pipe (NPTF) 5/16-24 1/8-27
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.70 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 5/16-24 |
|---|---|
| Connection 2 thread | 1/8-27 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.70 |
| 2+ | $4.20 |
| 3+ | $3.37 |
| 4+ | $2.95 |
| 5+ | $2.70 |
| 10+ | $1.66 |
| 25+ | $1.25 |
| 50+ | $1.01 |
| 75+ | $0.87 |
| 100+ | $0.77 |

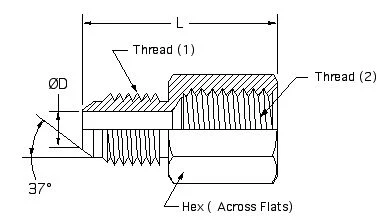

Drawing dimensions
| L | 1.12 |
|---|---|
| D | 0.062 |
| Hex | 9/16 |
| Thread(1) | 5/16-24 |
| Thread(2) | 1/8-27 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
