MCPHydraulic Adapters · Plug, Hex Head, JIC
2408-08

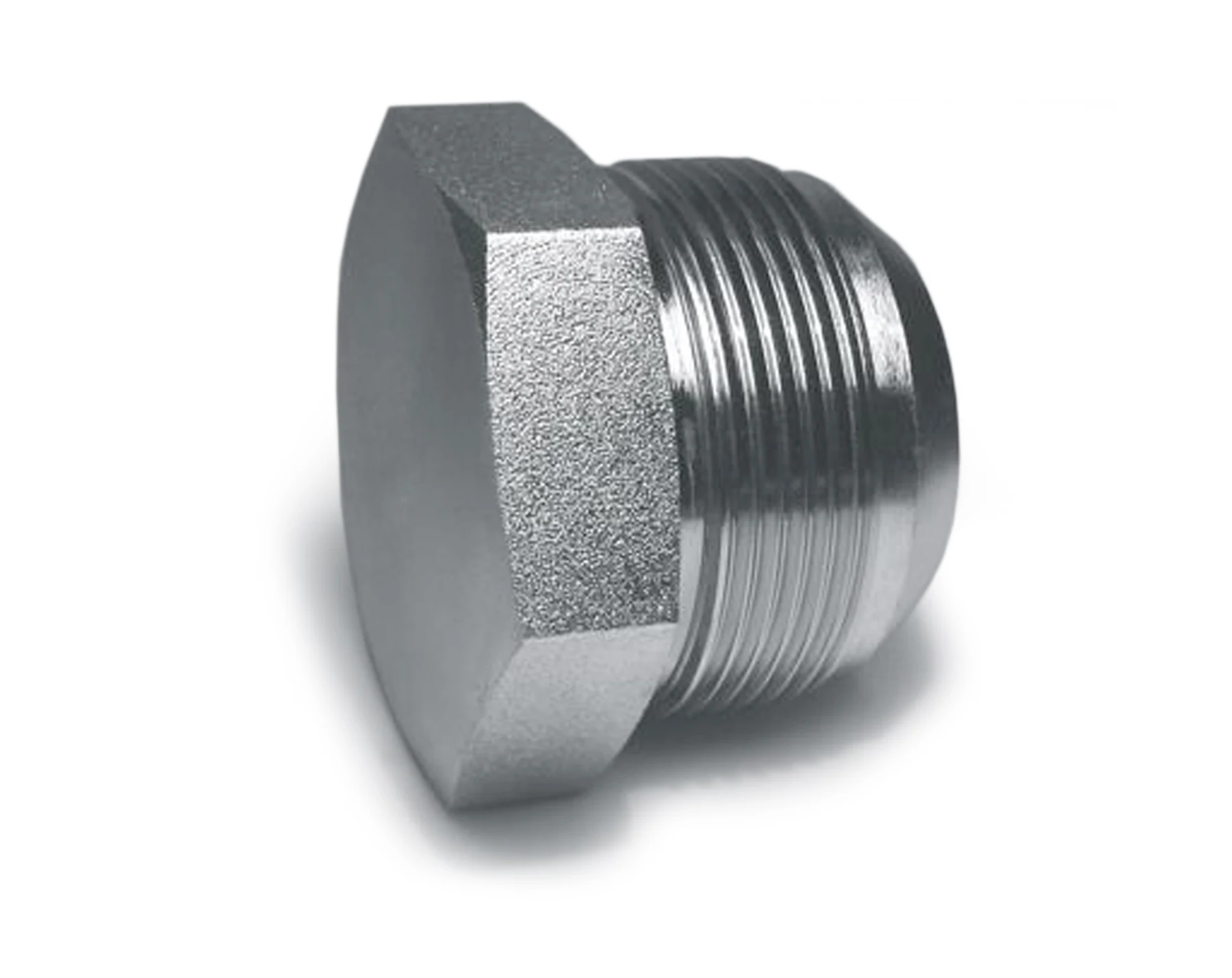

2408-08, Hydraulic Adapters, Plug, Hex Head, JIC 3/4 - 16 0.81
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.31 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/4 - 16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.31 |
| 2+ | $2.81 |
| 3+ | $1.98 |
| 4+ | $1.56 |
| 5+ | $1.31 |
| 10+ | $0.81 |
| 25+ | $0.51 |
| 50+ | $0.32 |
| 100+ | $0.24 |
| 250+ | $0.19 |
| 500+ | $0.14 |

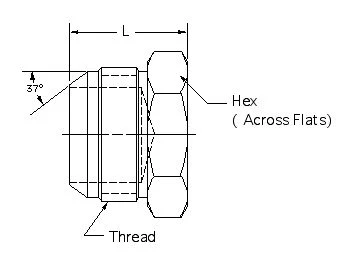

Drawing dimensions
| L | 0.94 |
|---|---|
| Thread | 3/4 - 16 |
| Hex | 0.81 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: steel
Plating: zinc clear (silver)
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
