MCPHydraulic Adapters · Elbow, 90°, Male, JIC
2500-08-06
2500-08-06, Hydraulic Adapters, Elbow, 90°, Male, JIC 3/4-16 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.06 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.06 |
| 2+ | $3.56 |
| 3+ | $2.73 |
| 4+ | $2.31 |
| 5+ | $2.06 |
| 10+ | $1.55 |
| 25+ | $0.93 |
| 50+ | $0.76 |
| 75+ | $0.64 |
| 100+ | $0.55 |
| 250+ | $0.48 |
| 500+ | $0.36 |

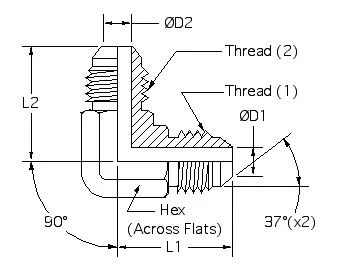

Drawing dimensions
| L1 | 1.25 |
|---|---|
| L2 | 1.15 |
| D1 | 0.390 |
| D2 | 0.300 |
| Hex | 13/16 |
| Thread(1) | 3/4-16 |
| Thread(2) | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
