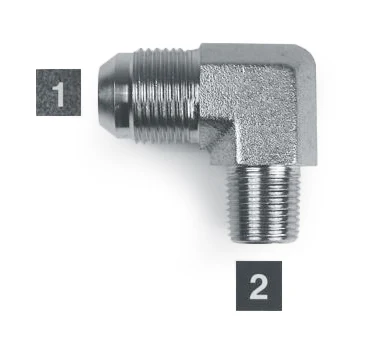

MCPHydraulic Adapters · Elbow, 90°, Male, JIC-Pipe (NPTF)
2501-05-04
2501-05-04, Hydraulic Adapters, Elbow, 90°, Male, JIC-Pipe (NPTF) 1/2-20 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.11 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/2-20 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.11 |
| 2+ | $3.61 |
| 3+ | $2.77 |
| 4+ | $2.36 |
| 5+ | $2.11 |
| 10+ | $1.59 |
| 25+ | $0.96 |
| 50+ | $0.79 |
| 75+ | $0.66 |
| 100+ | $0.57 |

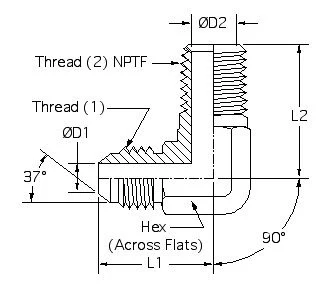

Drawing dimensions
| L1 | 0.98 |
|---|---|
| L2 | 1.09 |
| D1 | 0.23 |
| D2 | 0.28 |
| Thread 1 | 1/2-20 |
| Thread 2 | 1/4-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic adapters
Compare specifications and drawings to select the right part.
