MCPHydraulic Adapters · Elbow, 90°, Male, Long, JIC-Pipe (NPTF)
2501L-06-06

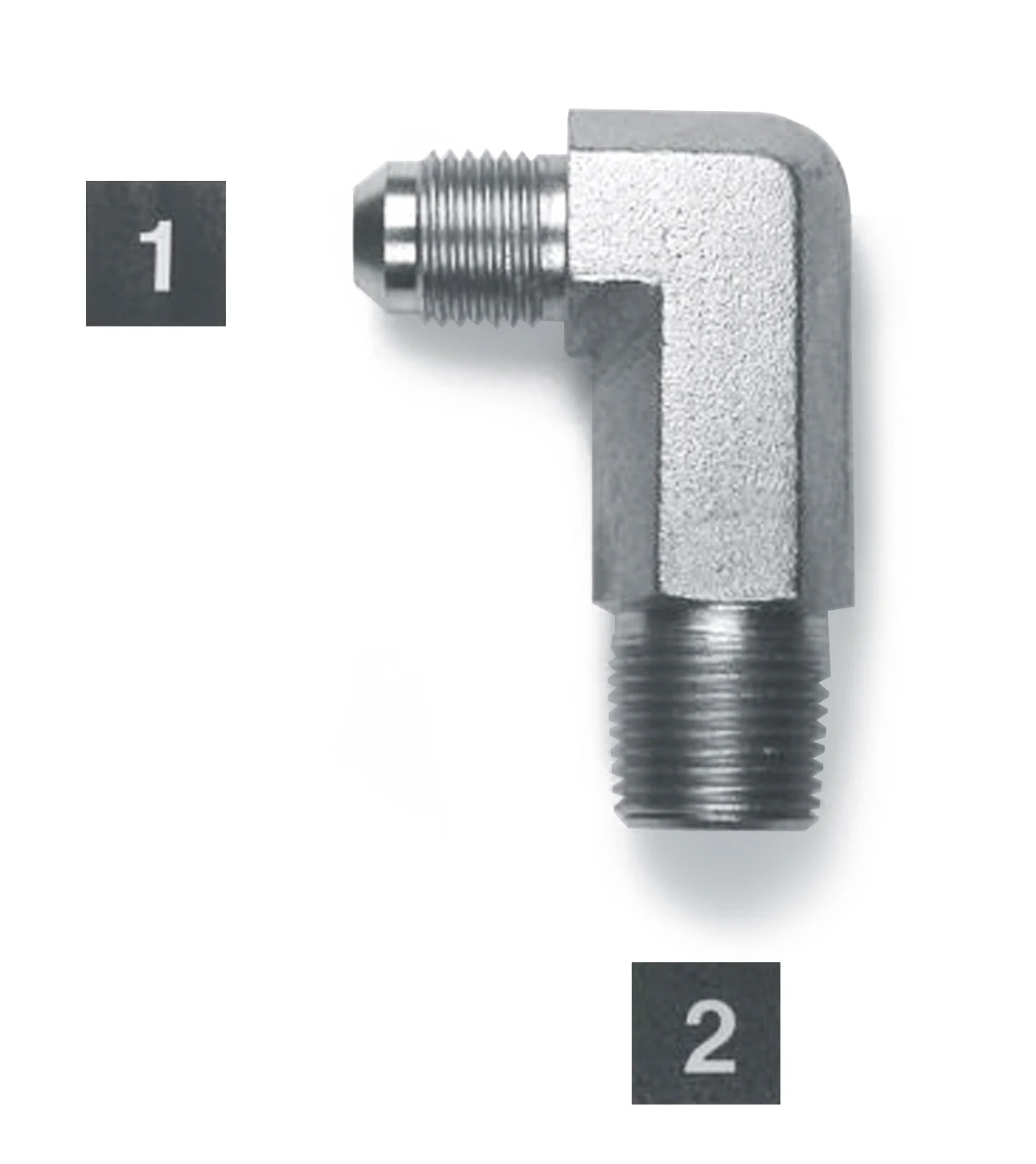

2501L-06-06, Hydraulic Adapters, Elbow, 90°, Male, Long, JIC-Pipe (NPTF) 3/8-18 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.46 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.46 |
| 2+ | $3.96 |
| 3+ | $3.13 |
| 4+ | $2.71 |
| 5+ | $2.46 |
| 10+ | $1.94 |
| 25+ | $1.10 |
| 50+ | $0.88 |
| 75+ | $0.76 |
| 100+ | $0.74 |

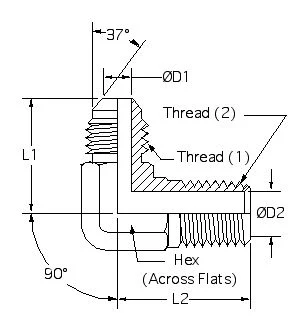

Drawing dimensions
| L1 | 1.14 |
|---|---|
| L2 | 1.82 |
| D1 | 0.297 |
| D2 | 0.406 |
| Hex | 3/4 |
| Thread(1) | 9/16-18 |
| Thread (2) | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
