Hydraulic Adapters · Elbow, 90°, Male, Long XXL, JIC-Pipe (NPTF)

2501LLL-04-02

2501LLL-04-02, Hydraulic Adapters, Elbow, 90°, Male, Long XXL, JIC-Pipe (NPTF) 1/8-27 7/16-20

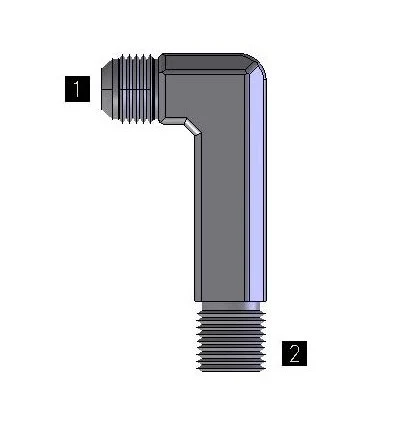

Product image
2501LLL-04-02 product image

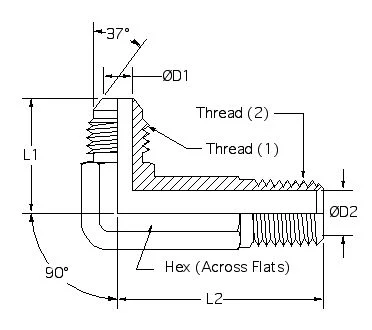

Dimension drawing 1
2501LLL-04-02 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$6.90 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread7/16-20
Connection 2 thread1/8-27

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$6.90
2+$4.40
3+$3.56
4+$3.15
5+$2.87
10+$1.80
25+$1.38
50+$0.99
75+$0.95
100+$0.86

Drawing dimensions

L10.89
L22.31
D10.172
D20.188
Hex1/2
Thread(1)7/16-20
Thread(2)1/8-27

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
