MCPHydraulic Adapters · Elbow, 90°, Male-Female, JIC-Pipe (NPTF)
2502-10-08

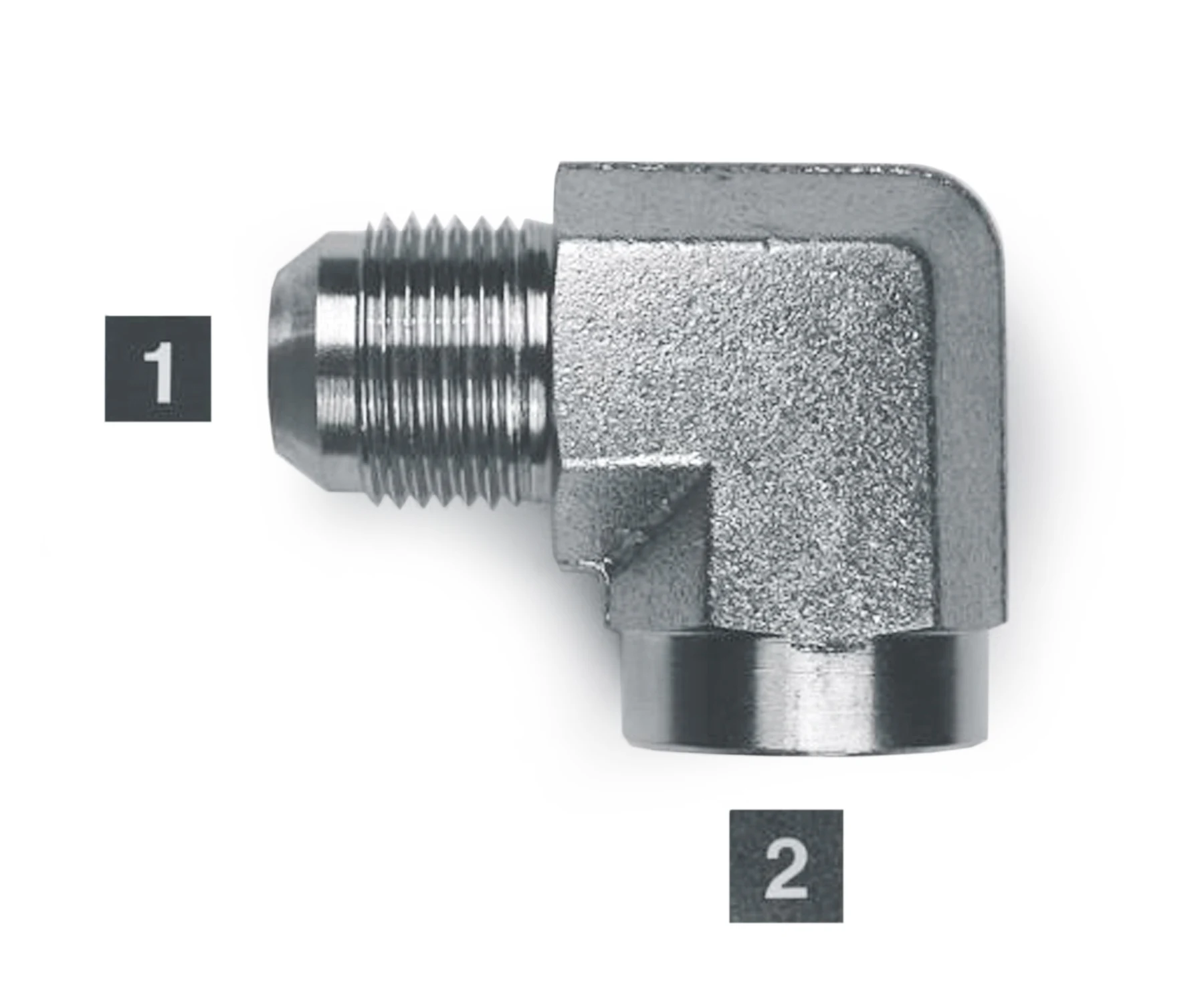

2502-10-08, Hydraulic Adapters, Elbow, 90°, Male-Female, JIC-Pipe (NPTF) 7/8-14 1/2-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.28 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/8-14 |
|---|---|
| Connection 2 thread | 1/2-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.28 |
| 2+ | $5.78 |
| 3+ | $4.89 |
| 4+ | $4.47 |
| 5+ | $3.25 |
| 10+ | $2.53 |
| 25+ | $1.96 |
| 50+ | $1.51 |
| 100+ | $1.13 |
| 250+ | $0.97 |

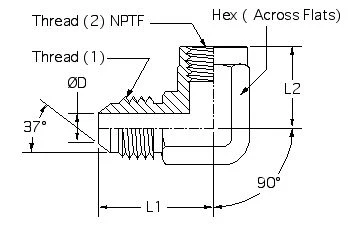

Drawing dimensions
| L1 | 1.64 |
|---|---|
| L2 | 1.23 |
| D | 0.48 |
| Thread 1 | 7/8-14 |
| Thread 2 | 1/2-14 |
| Hex | 1.13 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
