MCPHydraulic Adapters · Elbow, 45°, Male, JIC-Pipe (NPTF)
2503-06-04
2503-06-04, Hydraulic Adapters, Elbow, 45°, Male, JIC-Pipe (NPTF) 9/16-18 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.88 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.88 |
| 2+ | $3.38 |
| 3+ | $2.55 |
| 4+ | $2.13 |
| 5+ | $1.88 |
| 10+ | $1.38 |
| 25+ | $0.80 |
| 50+ | $0.64 |
| 75+ | $0.54 |
| 100+ | $0.52 |
| 250+ | $0.39 |
| 500+ | $0.30 |

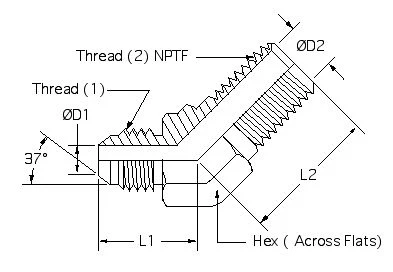

Drawing dimensions
| Thread 1 | 9/16-18 |
|---|---|
| Thread 2 | 1/4-18 |
| L1 | 0.83 |
| L2 | 0.86 |
| Hex | 0.562 |
| D1 | 0.297 |
| D2 | 0.281 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic adapters
Compare specifications and drawings to select the right part.
