MCPHydraulic Adapters · Elbow, 45°, Male, JIC
2504-04-04

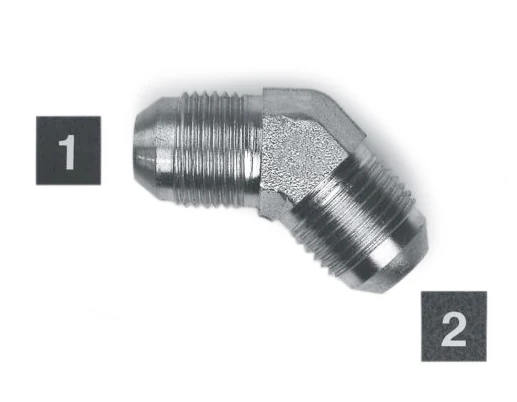

2504-04-04, Hydraulic Adapters, Elbow, 45°, Male, JIC 7/16-20 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.87 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.87 |
| 2+ | $4.37 |
| 3+ | $3.54 |
| 4+ | $3.12 |
| 5+ | $2.84 |
| 10+ | $1.78 |
| 25+ | $1.35 |
| 50+ | $0.97 |
| 75+ | $0.94 |
| 100+ | $0.85 |

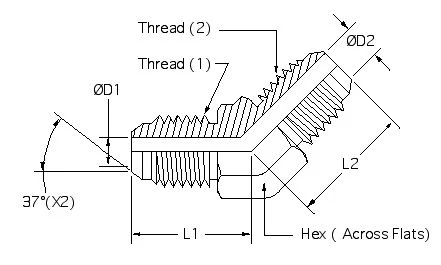

Drawing dimensions
| L1 | 0.72 |
|---|---|
| L2 | 0.72 |
| D1 | 0.193 |
| D2 | 0.193 |
| Hex | 7/16 |
| Thread(1) | 7/16-20 |
| Thread(2) | 7/16-20 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
