MCPHydraulic Adapters · Elbow, 45°, Male-Female, JIC-Pipe (NPTF)
2505-08-06
2505-08-06, Hydraulic Adapters, Elbow, 45°, Male-Female, JIC-Pipe (NPTF) 3/4-16 3/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.57 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.57 |
| 2+ | $6.07 |
| 3+ | $5.17 |
| 4+ | $4.76 |
| 5+ | $3.44 |
| 10+ | $2.70 |
| 25+ | $2.11 |
| 50+ | $1.62 |
| 100+ | $1.22 |
| 250+ | $1.07 |
| 500+ | $1.00 |

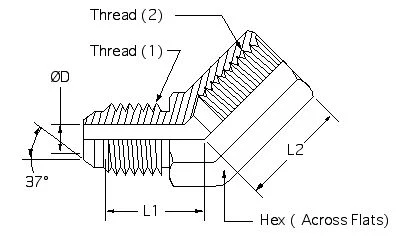

Drawing dimensions
| L1 | 1.00 |
|---|---|
| L2 | 0.67 |
| D | 0.391 |
| Hex | 7/8 |
| Thread(1) | 3/4-16 |
| Thread(2) | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
