MCPHydraulic Adapters · Tee, Branch, M-M-F, JIC
2602-10-10-08

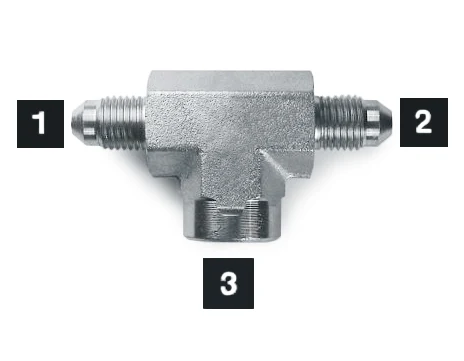

2602-10-10-08, Hydraulic Adapters, Tee, Branch, M-M-F, JIC 7/8-14 7/8-14 1/2-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.59 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/8-14 |
|---|---|
| Connection 2 thread | 7/8-14 |
| Connection 3 thread | 1/2-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.59 |
| 2+ | $6.09 |
| 3+ | $5.20 |
| 4+ | $4.78 |
| 5+ | $3.46 |
| 10+ | $2.72 |
| 25+ | $2.13 |
| 50+ | $1.64 |
| 100+ | $1.24 |
| 250+ | $1.07 |
| 500+ | $1.00 |

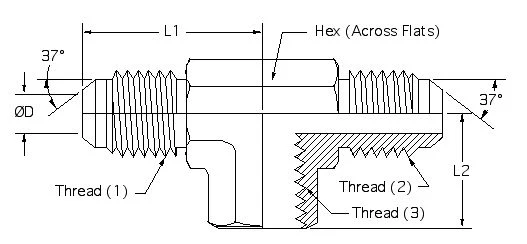

Drawing dimensions
| L1 | 1.64 |
|---|---|
| L2 | 1.23 |
| D | 0.484 |
| Hex | 1 1/16 |
| Thread(1) | 7/8-14 |
| Thread(2) | 7/8-14 |
| Thread(3) | 1/2-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
