MCPHydraulic Adapters · Tee, Male Run, Male, JIC-Pipe (NPTF)-JIC
2605-04-02-04

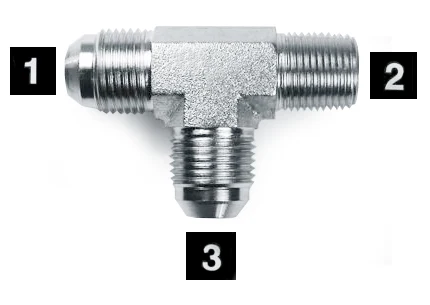

2605-04-02-04, Hydraulic Adapters, Tee, Male Run, Male, JIC-Pipe (NPTF)-JIC 7/16-20 1/8-27
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.06 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 1/8-27 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.06 |
| 2+ | $3.56 |
| 3+ | $2.73 |
| 4+ | $2.31 |
| 5+ | $2.06 |
| 10+ | $1.54 |
| 25+ | $0.92 |
| 50+ | $0.75 |
| 75+ | $0.63 |
| 100+ | $0.54 |

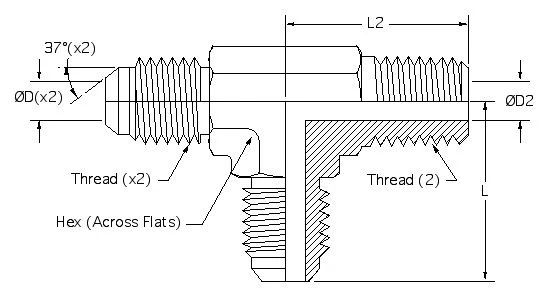

Drawing dimensions
| L | 0.89 |
|---|---|
| L2 | 0.78 |
| D | 0.172 |
| D2 | 0.188 |
| Hex | 7/16 |
| Thread (1) | 7/16-20 |
| Thread (2) | 1/8-27 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
