Hydraulic Adapters · Tee, Run, M-F-M, JIC-Pipe (NPTF)-JIC

2606-06-04-06

2606-06-04-06, Hydraulic Adapters, Tee, Run, M-F-M, JIC-Pipe (NPTF)-JIC 1/4-18 9/16-18 9/16-18

Product image
2606-06-04-06 product image

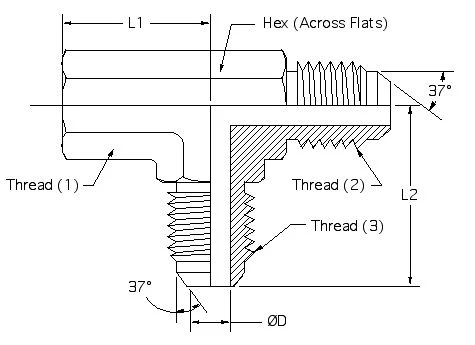

Dimension drawing 1
2606-06-04-06 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.27 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread1/4-18
Connection 2 thread9/16-18
Connection 3 thread9/16-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.27
2+$5.77
3+$4.88
4+$4.46
5+$3.24
10+$2.52
25+$1.95
50+$1.50
100+$1.12
250+$0.98

Drawing dimensions

L10.88
L21.23
D0.297
Hex3/4
Thread(1)1/4-18
Thread(2)9/16-18
Thread(3)9/16-18

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
