MCPHydraulic Adapters · Elbow, 45°, Male, Bulkhead, JIC
2702LN-08-08
2702LN-08-08, Hydraulic Adapters, Elbow, 45°, Male, Bulkhead, JIC 3/4-16 3/4-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 3/4-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.27 |
| 2+ | $5.77 |
| 3+ | $4.88 |
| 4+ | $4.46 |
| 5+ | $3.24 |
| 10+ | $2.52 |
| 25+ | $1.95 |
| 50+ | $1.50 |
| 100+ | $1.12 |
| 250+ | $0.98 |

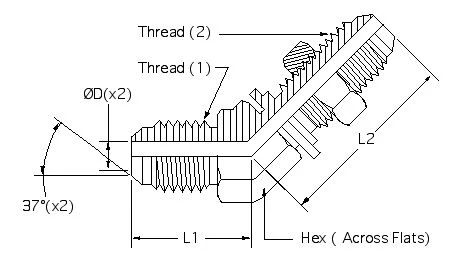

Drawing dimensions
| L1 | 0.98 |
|---|---|
| L2 | 1.94 |
| D | 0.391 |
| Hex | 3/4 |
| Thread(1) | 3/4-16 |
| Thread(2) | 3/4-16 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
