Hydraulic Adapters · Union, Male, Bulkhead, Pipe (NPTF)-JIC

2706LN-06-06

2706LN-06-06, Hydraulic Adapters, Union, Male, Bulkhead, Pipe (NPTF)-JIC 3/8-18 9/16-18

Product image
2706LN-06-06 product image

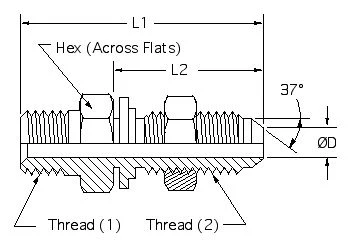

Dimension drawing 1
2706LN-06-06 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.27 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread3/8-18
Connection 2 thread9/16-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.27
2+$5.77
3+$4.87
4+$4.46
5+$3.24
10+$2.52
25+$1.95
50+$1.50
100+$1.12
250+$0.98

Drawing dimensions

L12.22
L21.28
D0.297
Hex13/16
Thread(1)3/8-18
Thread(2)9/16-18

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
