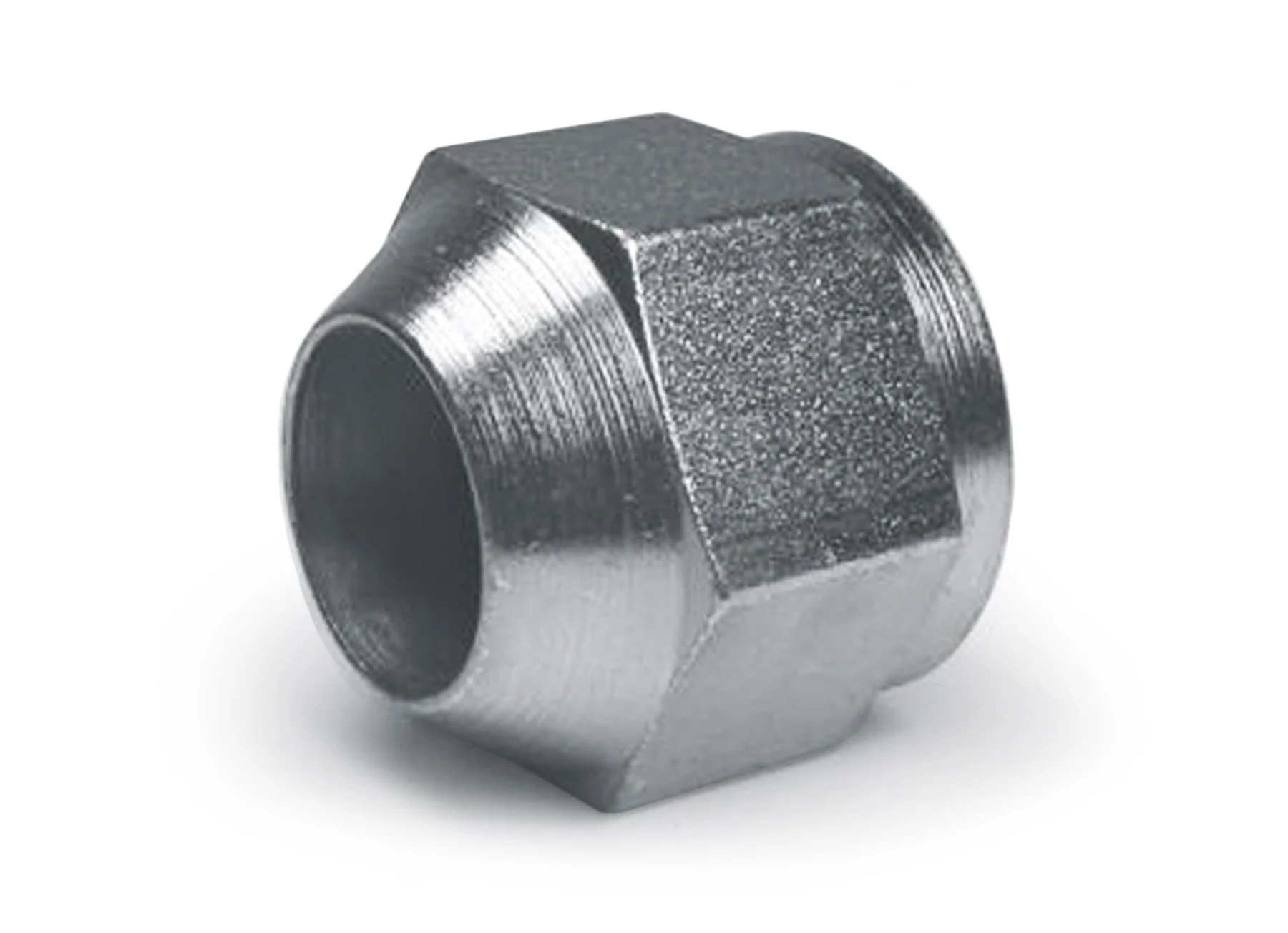

MCPHydraulic Adapters · Nut, Flare, Short, JIC
302-08
302-08, Hydraulic Adapters, Nut, Flare, Short, JIC 3/4-16 7/8
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.41 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/4-16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.41 |
| 2+ | $2.91 |
| 3+ | $2.08 |
| 4+ | $1.66 |
| 5+ | $1.41 |
| 10+ | $0.91 |
| 25+ | $0.60 |
| 50+ | $0.38 |
| 100+ | $0.30 |
| 250+ | $0.21 |
| 500+ | $0.18 |
Drawing dimensions
| L | 0.81 |
|---|---|
| T | 0.45 |
| Hex | 7/8 |
| Thread | 3/4-16 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
