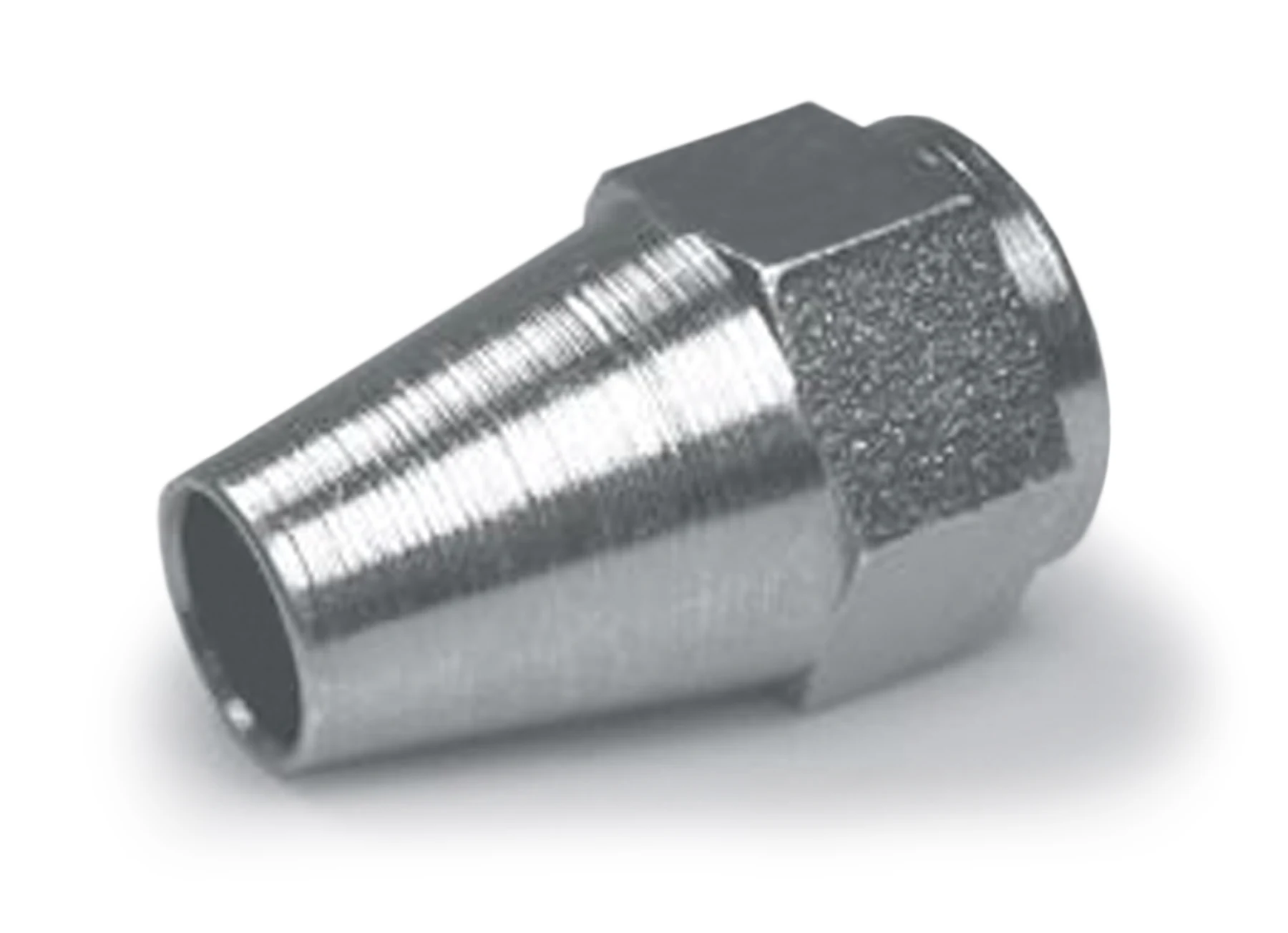

MCPHydraulic Adapters · Nut, Flare, Long, JIC
304-03
304-03, Hydraulic Adapters, Nut, Flare, Long, JIC 3/8-24 7/16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.44 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.44 |
| 2+ | $2.94 |
| 3+ | $2.11 |
| 4+ | $1.69 |
| 5+ | $1.44 |
| 10+ | $0.94 |
| 25+ | $0.64 |
| 50+ | $0.40 |
| 100+ | $0.32 |
| 250+ | $0.23 |
| 500+ | $0.20 |

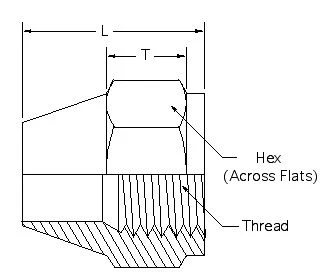

Drawing dimensions
| L | 0.94 |
|---|---|
| T | 0.27 |
| Hex | 7/16 |
| Thread | 3/8-24 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
