MCPHydraulic Adapters · Cap, Female, JIC
304C-05

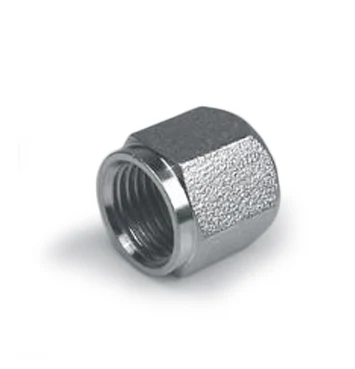

304C-05, Hydraulic Adapters, Cap, Female, JIC 1/2-20 5/8
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.30 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.30 |
| 2+ | $2.80 |
| 3+ | $1.97 |
| 4+ | $1.55 |
| 5+ | $1.30 |
| 10+ | $0.80 |
| 25+ | $0.50 |
| 50+ | $0.39 |
| 100+ | $0.25 |
| 250+ | $0.18 |
| 500+ | $0.15 |

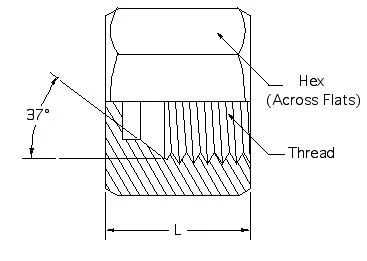

Drawing dimensions
| L | 0.61 |
|---|---|
| Hex | 5/8 |
| Thread | 1/2-20 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
