MCPHydraulic Adapters · Bulkhead Nut, JIC
306-04

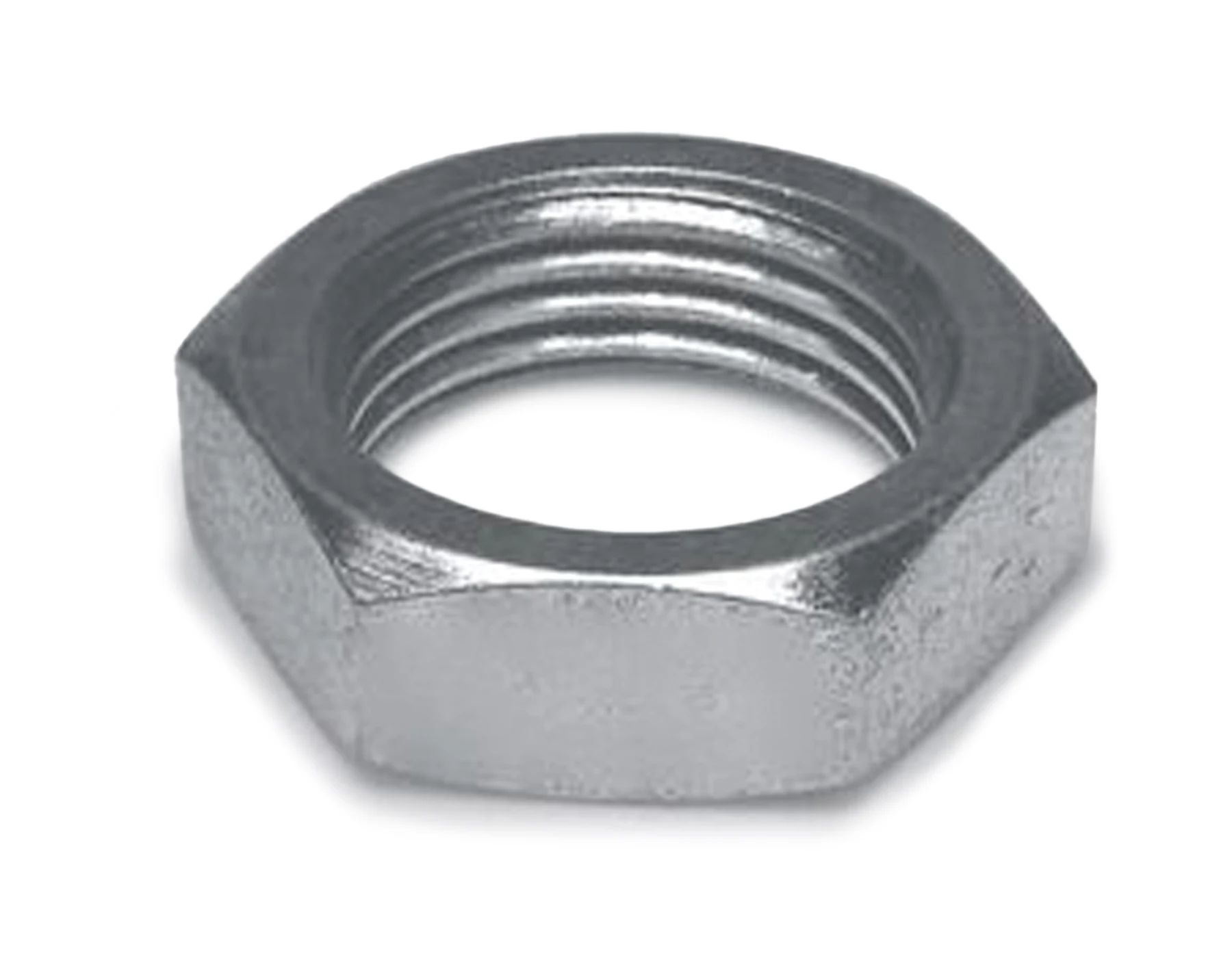

306-04, Hydraulic Adapters, Bulkhead Nut, JIC 7/16-20 0.69
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.06 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 7/16-20 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.06 |
| 2+ | $2.56 |
| 3+ | $1.73 |
| 4+ | $1.31 |
| 5+ | $1.06 |
| 10+ | $0.56 |
| 25+ | $0.26 |
| 50+ | $0.16 |
| 100+ | $0.11 |
| 250+ | $0.08 |
Drawing dimensions
| Thread | 7/16-20 |
|---|---|
| Hex | 0.69 |
| W | 0.25 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
