MCPHydraulic Adapters · Nut, Flare, Tube, JIC
318-02

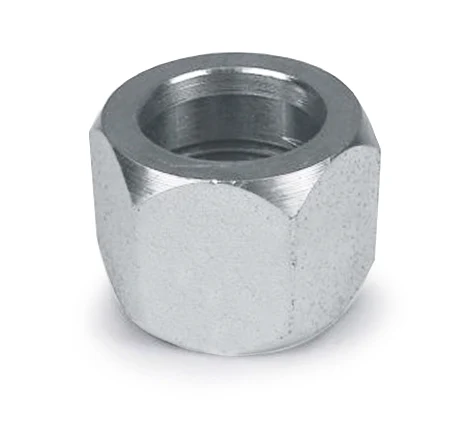

318-02, Hydraulic Adapters, Nut, Flare, Tube, JIC 5/16-24 3/8
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.23 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.23 |
| 2+ | $2.73 |
| 3+ | $1.90 |
| 4+ | $1.48 |
| 5+ | $1.23 |
| 10+ | $0.73 |
| 25+ | $0.43 |
| 50+ | $0.33 |
| 100+ | $0.21 |
| 250+ | $0.16 |
| 500+ | $0.12 |
Drawing dimensions
| L | 0.55 |
|---|---|
| Hex | 3/8 |
| Thread | 5/16-24 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
