MCPHydraulic Adapters · Nut, Flare, Tube, Convert-a-Flare, JIC
418-06

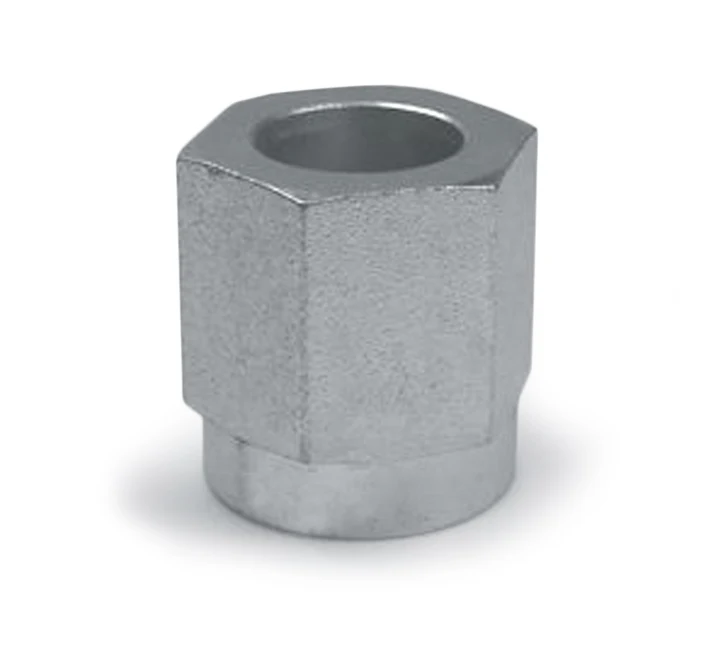

418-06, Hydraulic Adapters, Nut, Flare, Tube, Convert-a-Flare, JIC 9/16-18 3/8 Tube OD
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.11 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 9/16-18 |
|---|---|
| Tube outside diameter | 3/8 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.11 |
| 2+ | $3.61 |
| 3+ | $2.78 |
| 4+ | $2.36 |
| 5+ | $2.11 |
| 10+ | $1.59 |
| 25+ | $0.96 |
| 50+ | $0.78 |
| 75+ | $0.66 |
| 100+ | $0.57 |
| 250+ | $0.49 |
| 500+ | $0.37 |

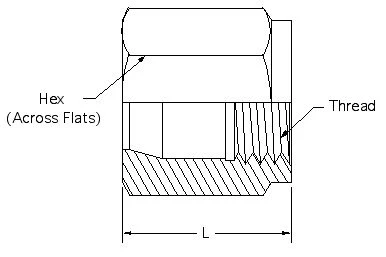

Drawing dimensions
| L | 0.86 |
|---|---|
| Hex | 11/16 |
| Thread | 9/16-18 |
| Tube OD | 3/8 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
