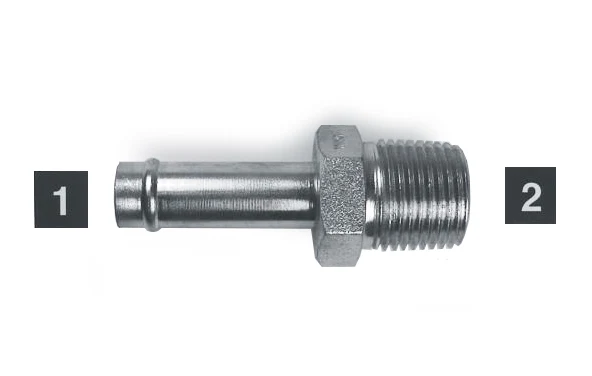

MCPHydraulic Adapters · Union, Barb-Male, Barb-Pipe (NPTF)
4404-04-04
4404-04-04, Hydraulic Adapters, Union, Barb-Male, Barb-Pipe (NPTF) 1/4-18 0.56
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.48 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-18 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.48 |
| 2+ | $2.98 |
| 3+ | $2.15 |
| 4+ | $1.73 |
| 5+ | $1.48 |
| 10+ | $0.98 |
| 25+ | $0.67 |
| 50+ | $0.43 |
| 100+ | $0.35 |
| 250+ | $0.25 |
| 500+ | $0.22 |

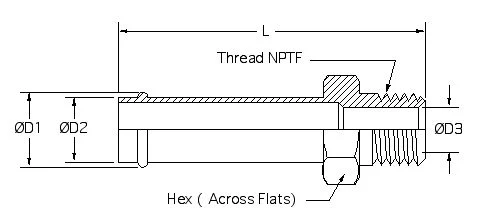

Drawing dimensions
| L | 2.35 |
|---|---|
| D1 | 0.29 |
| D2 | 1/4 |
| D3 | 0.21 |
| Thread | 1/4-18 |
| Hex | 0.56 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plating
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
