MCPHydraulic Adapters · Elbow, 90°, Barb-Male, Barb-Pipe (NPTF)
4501-12-08
4501-12-08, Hydraulic Adapters, Elbow, 90°, Barb-Male, Barb-Pipe (NPTF) 1/2-14 3/4

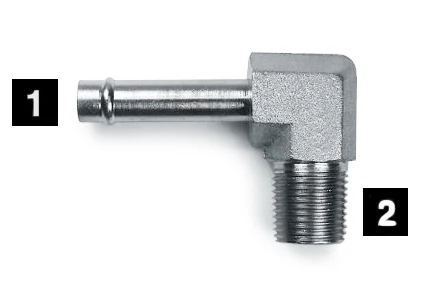

Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.13 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-14 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.13 |
| 2+ | $3.63 |
| 3+ | $2.80 |
| 4+ | $2.38 |
| 5+ | $2.13 |
| 10+ | $1.61 |
| 25+ | $0.97 |
| 50+ | $0.80 |
| 75+ | $0.68 |
| 100+ | $0.58 |

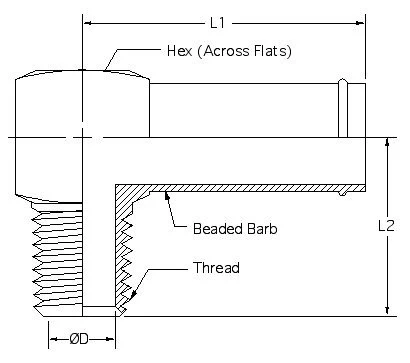

Drawing dimensions
| L1 | 2.06 |
|---|---|
| L2 | 1.47 |
| D | 0.531 |
| Hex | 7/8 |
| Thread | 1/2-14 |
| Beaded Barb | 3/4 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
