MCPHydraulic Adapters · Elbow, 45°, Barb-Male, Barb-Pipe (NPTF)
4503-08-06
4503-08-06, Hydraulic Adapters, Elbow, 45°, Barb-Male, Barb-Pipe (NPTF) 3/8-18 3/4 Nut Hex

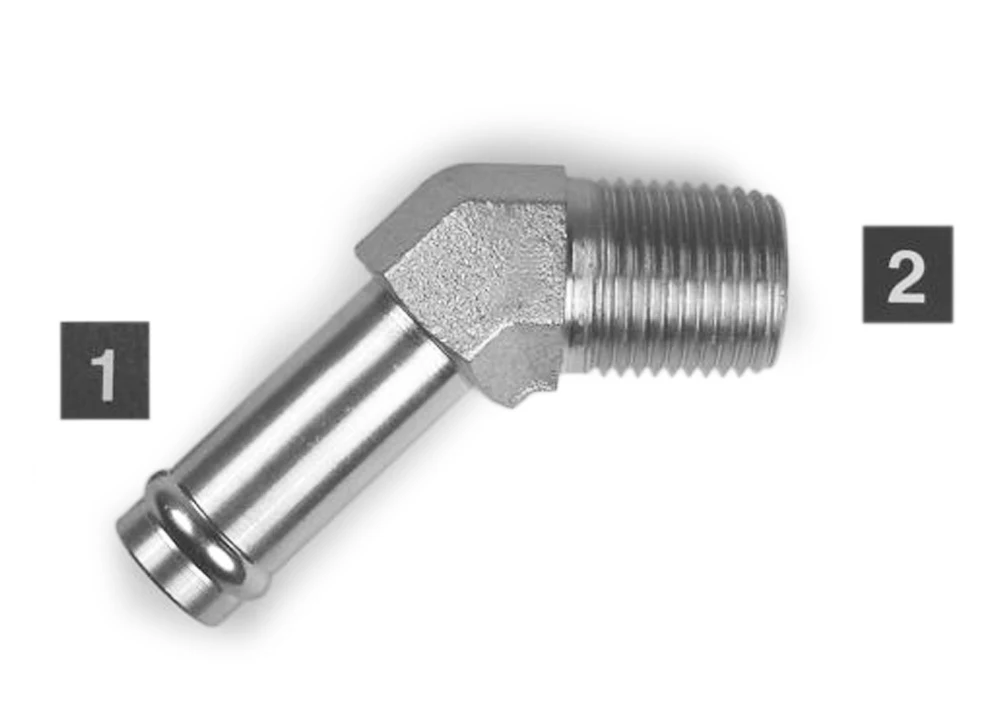

Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.78 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-18 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.78 |
| 2+ | $4.28 |
| 3+ | $3.44 |
| 4+ | $3.03 |
| 5+ | $2.78 |
| 10+ | $1.72 |
| 25+ | $1.30 |
| 50+ | $1.05 |
| 75+ | $0.90 |
| 100+ | $0.81 |

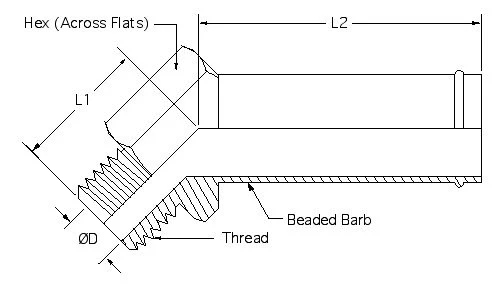

Drawing dimensions
| L1 | 0.98 |
|---|---|
| L2 | 1.83 |
| D | 0.406 |
| Nut Hex | 3/4 |
| Thread | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic adapters
Compare specifications and drawings to select the right part.
