MCPHydraulic Adapters · Elbow, 90°, Barb-Male, Barb-ORB
4601-06-06
4601-06-06, Hydraulic Adapters, Elbow, 90°, Barb-Male, Barb-ORB 9/16-18 3/8 Bead
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.86 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 9/16-18 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.86 |
| 2+ | $14.11 |
| 3+ | $13.27 |
| 4+ | $11.29 |
| 5+ | $9.79 |
| 10+ | $8.50 |
| 25+ | $6.32 |
| 50+ | $5.60 |
| 75+ | $5.56 |
| 100+ | $5.23 |
| 250+ | $4.42 |
| 500+ | $3.78 |

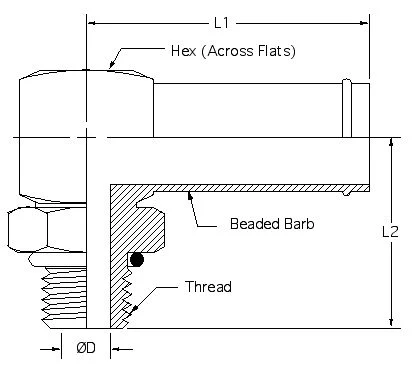

Drawing dimensions
| L1 | 1.85 |
|---|---|
| L2 | 1.24 |
| D | 0.297 |
| Hex | 9/16 |
| Thread | 9/16-18 |
| Beaded Barb | 3/8 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
