MCPHydraulic Adapters · Union, Male, Pipe (NPTF)
5404-08-04
5404-08-04, Hydraulic Adapters, Union, Male, Pipe (NPTF) 1/2-14 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.36 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/2-14 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.36 |
| 2+ | $2.86 |
| 3+ | $2.02 |
| 4+ | $1.61 |
| 5+ | $1.36 |
| 10+ | $0.86 |
| 25+ | $0.56 |
| 50+ | $0.35 |
| 100+ | $0.28 |
| 250+ | $0.22 |
| 500+ | $0.17 |

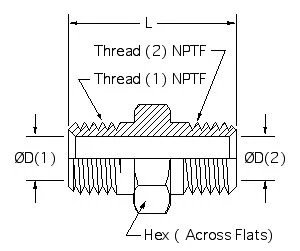

Drawing dimensions
| L | 1.70 |
|---|---|
| D(1) | 0.53 |
| D(2) | 0.28 |
| Hex | 0.88 |
| Thread (1) | 1/2-14 |
| Thread (2) | 1/4-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: steel
Plating: zinc clear (silver)
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
