MCPHydraulic Adapters · Reducer, Male-Female, Pipe (NPTF)
5406-06-02

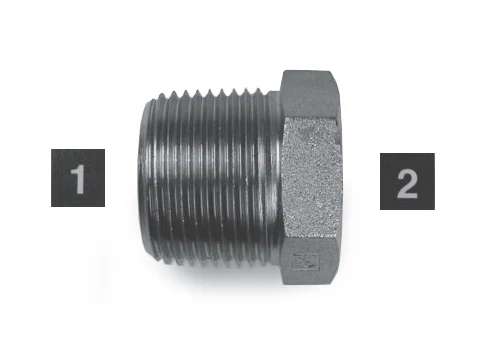

5406-06-02, Hydraulic Adapters, Reducer, Male-Female, Pipe (NPTF) 3/8-18 1/8-27
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.46 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/8-18 |
|---|---|
| Connection 2 thread | 1/8-27 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.46 |
| 2+ | $2.96 |
| 3+ | $2.13 |
| 4+ | $1.71 |
| 5+ | $1.46 |
| 10+ | $0.96 |
| 25+ | $0.65 |
| 50+ | $0.41 |
| 100+ | $0.33 |
| 250+ | $0.23 |
| 500+ | $0.20 |

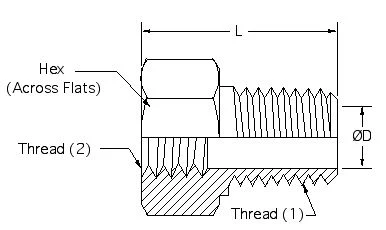

Drawing dimensions
| L | 0.85 |
|---|---|
| D | 0.188 |
| Hex | 3/4 |
| Thread(1) | 3/8-18 |
| Thread(2) | 1/8-27 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
