MCPHydraulic Adapters · Plug, Square Head, Pipe (NPTF)
5407-08
5407-08, Hydraulic Adapters, Plug, Square Head, Pipe (NPTF) 1/2-14 9/16 Square
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.44 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-14 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.44 |
| 2+ | $2.94 |
| 3+ | $2.11 |
| 4+ | $1.69 |
| 5+ | $1.44 |
| 10+ | $0.94 |
| 25+ | $0.63 |
| 50+ | $0.40 |
| 100+ | $0.32 |
| 250+ | $0.23 |
| 500+ | $0.20 |

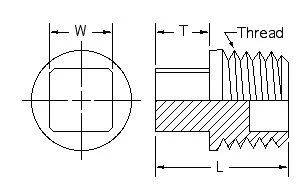

Drawing dimensions
| L | 1.00 |
|---|---|
| T | 0.38 |
| W | 9/16 |
| Thread | 1/2-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
