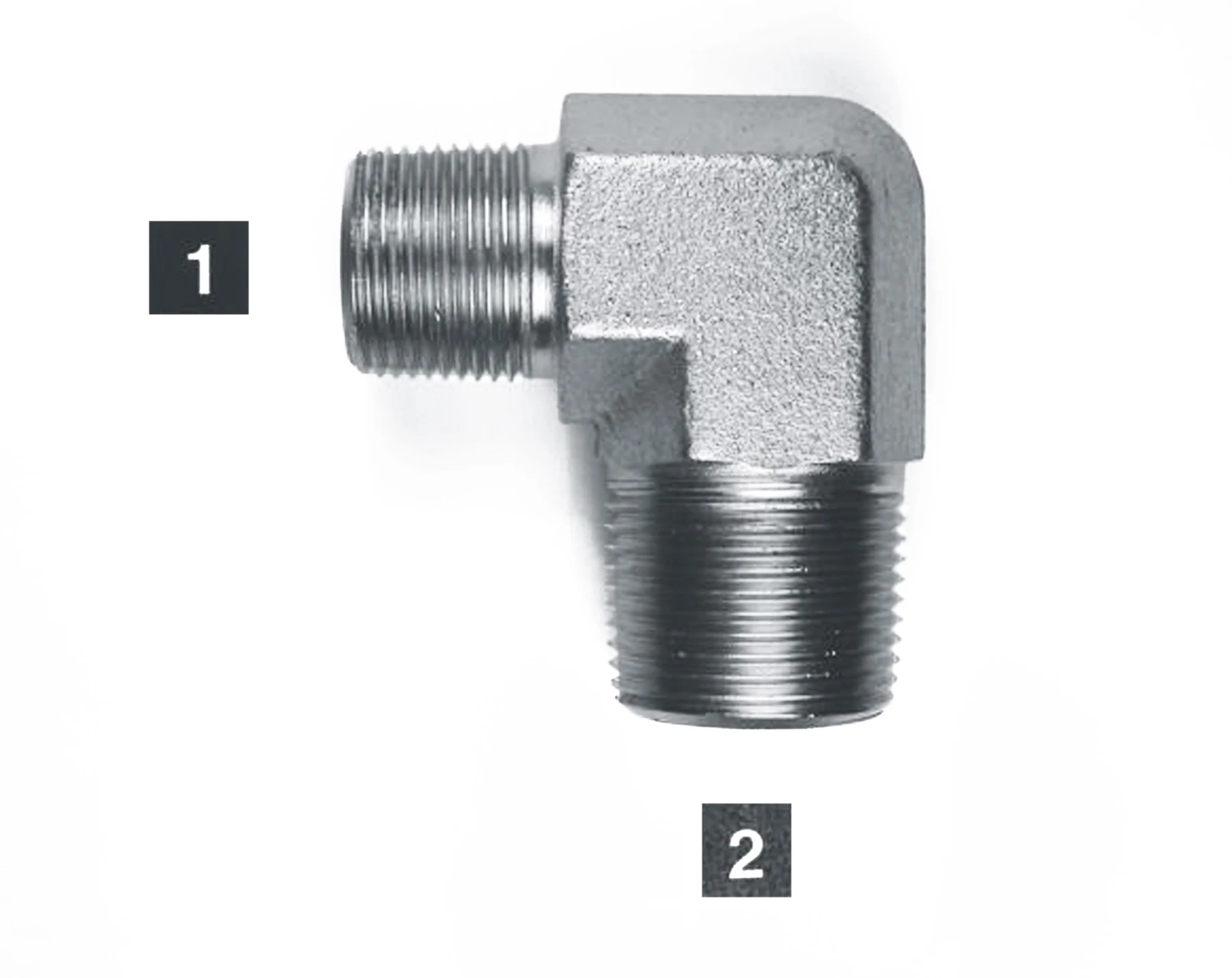

MCPHydraulic Adapters · Elbow, 90°, Male, Pipe (NPTF)
5500-02-02
5500-02-02, Hydraulic Adapters, Elbow, 90°, Male, Pipe (NPTF) 1/8-27 1/8-27
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.39 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/8-27 |
|---|---|
| Connection 2 thread | 1/8-27 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.39 |
| 2+ | $2.89 |
| 3+ | $2.06 |
| 4+ | $1.64 |
| 5+ | $1.39 |
| 10+ | $0.89 |
| 25+ | $0.59 |
| 50+ | $0.37 |
| 100+ | $0.29 |
| 250+ | $0.20 |
| 500+ | $0.18 |
Drawing dimensions
| L1 | 0.78 |
|---|---|
| L2 | 0.78 |
| D1 | 0.188 |
| D2 | 0.188 |
| Thread(1) | 1/8-27 |
| Thread(2) | 1/8-27 |
| Hex | 7/16 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
