MCPHydraulic Adapters · Elbow, 45°, Male-Female, Pipe (NPTF)
5503-04-04

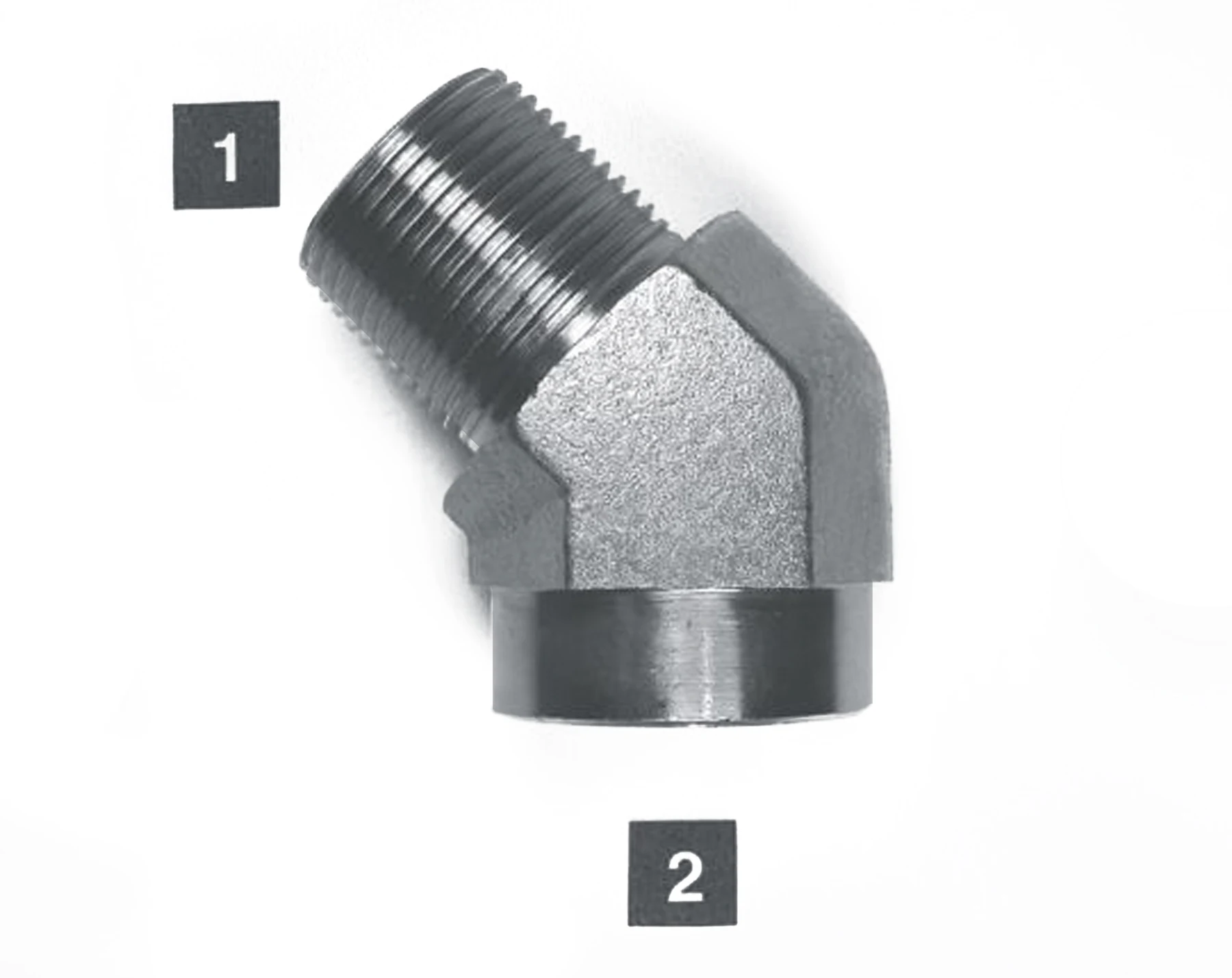

5503-04-04, Hydraulic Adapters, Elbow, 45°, Male-Female, Pipe (NPTF) 1/4-18 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.22 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/4-18 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.22 |
| 2+ | $3.72 |
| 3+ | $2.88 |
| 4+ | $2.47 |
| 5+ | $2.22 |
| 10+ | $1.70 |
| 25+ | $0.96 |
| 50+ | $0.76 |
| 75+ | $0.64 |
| 100+ | $0.63 |

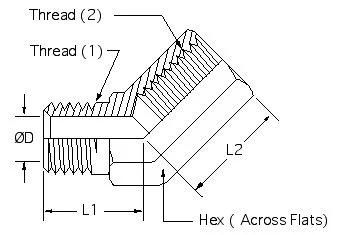

Drawing dimensions
| L1 | 1.05 |
|---|---|
| L2 | 0.63 |
| D | 0.281 |
| Thread(1) | 1/4-18 |
| Thread(2) | 1/4-18 |
| Hex | 3/4 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic adapters
Compare specifications and drawings to select the right part.
