Hydraulic Adapters · Tee, Branch, M-M-F, Pipe (NPTF)

5601-04-04-04

5601-04-04-04, Hydraulic Adapters, Tee, Branch, M-M-F, Pipe (NPTF) 1/4-18 1/4-18 1/4-18

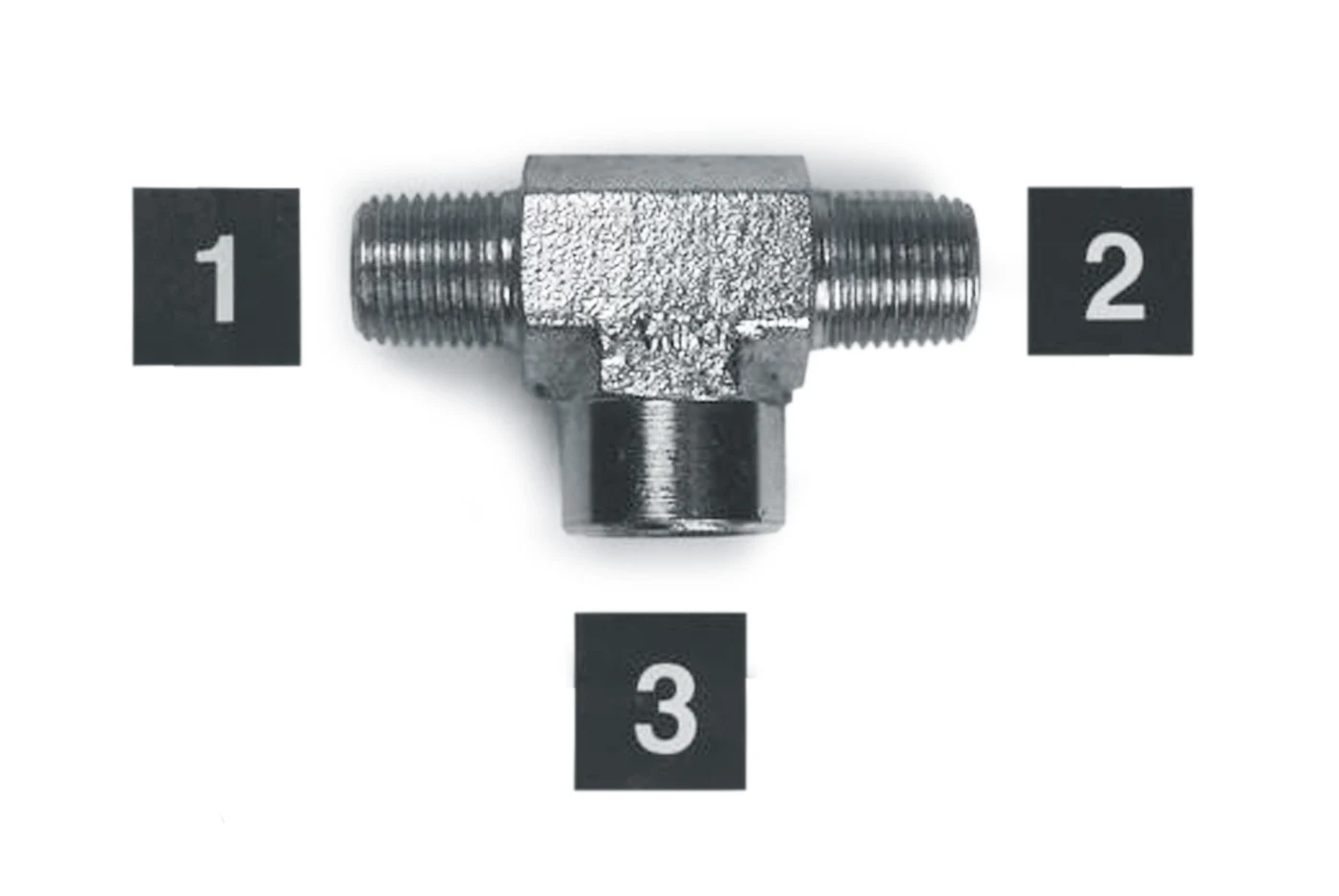

Product image
5601-04-04-04 product image

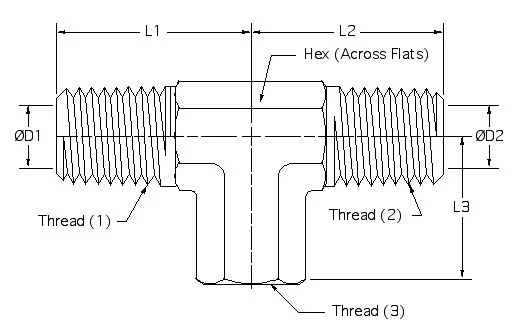

Dimension drawing 1
5601-04-04-04 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.39 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread1/4-18
Connection 2 thread1/4-18
Connection 3 thread1/4-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.39
2+$5.89
3+$5.00
4+$4.58
5+$3.32
10+$2.59
25+$2.01
50+$1.55
100+$1.16
250+$1.02

Drawing dimensions

L11.09
L21.09
L30.88
D10.281
D20.281
Hex3/4
Thread(1)1/4-18
Thread(2)1/4-18
Thread(3)1/4-18

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
