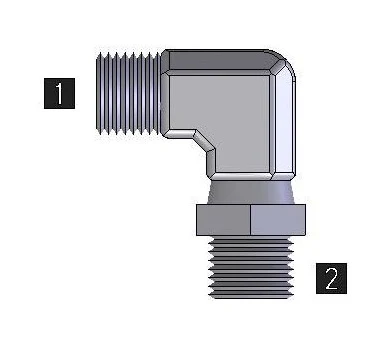

MCPHydraulic Adapters · Elbow, 90°, Male, Swivel, Pipe (NPTF)
5700-12-12
5700-12-12, Hydraulic Adapters, Elbow, 90°, Male, Swivel, Pipe (NPTF) 3/4-14 3/4-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.65 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-14 |
|---|---|
| Connection 2 thread | 3/4-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.65 |
| 2+ | $10.60 |
| 3+ | $8.98 |
| 4+ | $8.56 |
| 5+ | $8.31 |
| 10+ | $6.03 |
| 25+ | $5.24 |
| 50+ | $3.95 |
| 100+ | $3.51 |

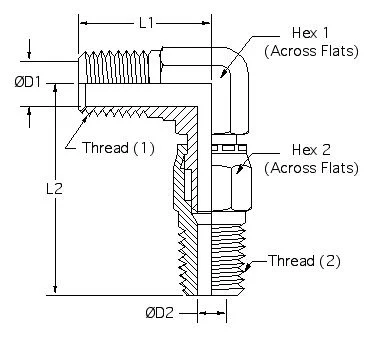

Drawing dimensions
| L1 | 1.51 |
|---|---|
| L2 | 2.24 |
| D1 | 0.703 |
| D2 | 0.656 |
| Hex 1 | 1 1/18 |
| Hex 2 | 1 5/16 |
| Thread 1 | 3/4-14 |
| Thread 2 | 3/4-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
