MCPHydraulic Adapters · Elbow, 90°, Female-Male, Swivel, Pipe (NPTF)
5702-08-08

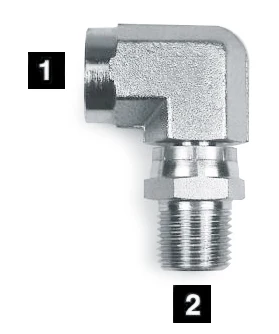

5702-08-08, Hydraulic Adapters, Elbow, 90°, Female-Male, Swivel, Pipe (NPTF) 1/2-14 1/2-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.91 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/2-14 |
|---|---|
| Connection 2 thread | 1/2-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.91 |
| 2+ | $8.59 |
| 3+ | $7.76 |
| 4+ | $6.75 |
| 5+ | $6.50 |
| 10+ | $5.26 |
| 25+ | $4.00 |
| 50+ | $3.01 |
| 100+ | $2.66 |

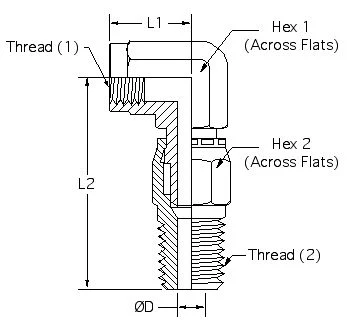

Drawing dimensions
| L1 | 1.23 |
|---|---|
| L2 | 2.02 |
| D | 0.500 |
| Hex 1 | 1 1/8 |
| Hex 2 | 1 |
| Thread 1 | 1/2-14 |
| Thread 2 | 1/2-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
