MCPHydraulic Adapters · Union, Male, JIC-ORB
6400-03-03

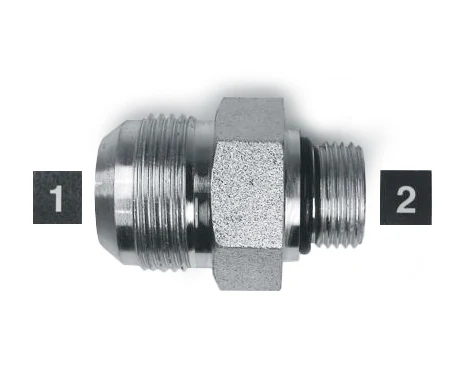

6400-03-03, Hydraulic Adapters, Union, Male, JIC-ORB 3/8-24 3/8-24
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.91 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.91 |
| 2+ | $3.41 |
| 3+ | $2.58 |
| 4+ | $2.16 |
| 5+ | $1.91 |
| 10+ | $1.39 |
| 25+ | $0.82 |
| 50+ | $0.66 |
| 75+ | $0.56 |
| 100+ | $0.47 |
| 250+ | $0.41 |
| 500+ | $0.31 |

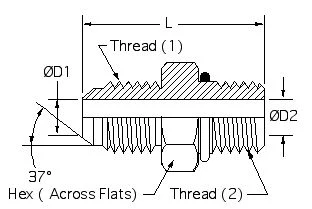

Drawing dimensions
| JIC Thread (1) | 3/8-24 |
|---|---|
| ORB Thread (2) | 3/8-24 |
| Hex | 1/2 |
| L | 1.10 |
| D1 | 0.125 |
| D2 | 0.125 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
