MCPHydraulic Adapters · Union, Male, JIC-ORB
6400-04-04
6400-04-04, Hydraulic Adapters, Union, Male, JIC-ORB 7/16-20 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.28 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.28 |
| 2+ | $2.78 |
| 3+ | $1.95 |
| 4+ | $1.53 |
| 5+ | $1.28 |
| 10+ | $0.78 |
| 25+ | $0.48 |
| 50+ | $0.37 |
| 100+ | $0.24 |
| 250+ | $0.17 |
| 500+ | $0.14 |

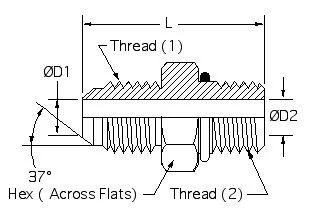

Drawing dimensions
| JIC Thread (1) | 7/16-20 |
|---|---|
| ORB Thread (2) | 7/16-20 |
| Hex | 9/16 |
| L | 1.23 |
| D1 | 0.172 |
| D2 | 0.172 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
