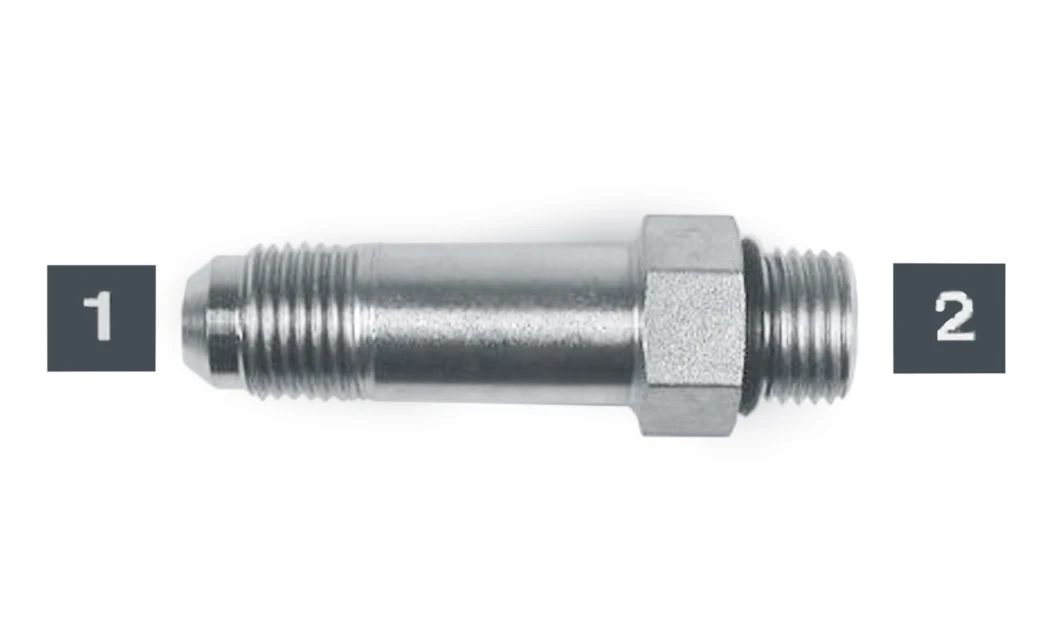

MCPHydraulic Adapters · Union, Male, Long, JIC-ORB
6400L-06-06
6400L-06-06, Hydraulic Adapters, Union, Male, Long, JIC-ORB 9/16-18 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.41 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.41 |
| 2+ | $3.91 |
| 3+ | $3.07 |
| 4+ | $2.66 |
| 5+ | $2.41 |
| 10+ | $1.89 |
| 25+ | $1.07 |
| 50+ | $0.86 |
| 75+ | $0.72 |
| 100+ | $0.71 |

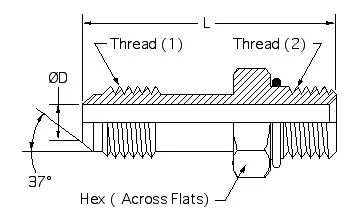

Drawing dimensions
| L | 2.31 |
|---|---|
| D | 0.297 |
| Hex | 11/16 |
| Thread 1 | 9/16-18 |
| Thread 2 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
