MCPHydraulic Adapters · Union, Male, ORB-Pipe (NPTF)
6401-10-06
6401-10-06, Hydraulic Adapters, Union, Male, ORB-Pipe (NPTF) 7/8-14 3/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/8-14 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.27 |
| 2+ | $5.77 |
| 3+ | $4.88 |
| 4+ | $4.46 |
| 5+ | $3.24 |
| 10+ | $2.52 |
| 25+ | $1.95 |
| 50+ | $1.50 |
| 100+ | $1.12 |
| 250+ | $0.98 |

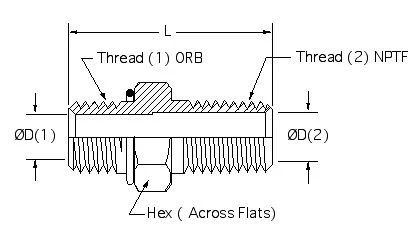

Drawing dimensions
| L | 1.50 |
|---|---|
| D(1) | 0.48 |
| D(2) | 0.41 |
| Hex | 1.00 |
| Thread (1) | 7/8-14 |
| Thread (2) | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
