MCPHydraulic Adapters · Union, Male-Female, Swivel, ORB-JIC
6402-10-10

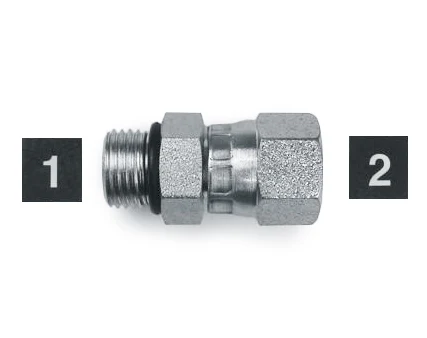

6402-10-10, Hydraulic Adapters, Union, Male-Female, Swivel, ORB-JIC 7/8-14 7/8-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.97 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/8-14 |
|---|---|
| Connection 2 thread | 7/8-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.97 |
| 2+ | $4.47 |
| 3+ | $3.64 |
| 4+ | $3.22 |
| 5+ | $2.94 |
| 10+ | $1.85 |
| 25+ | $1.42 |
| 50+ | $1.03 |
| 75+ | $1.00 |
| 100+ | $0.89 |

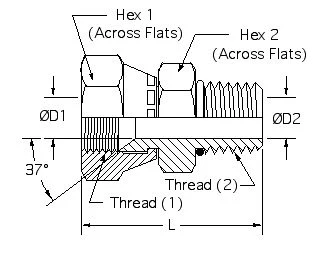

Drawing dimensions
| L | 1.99 |
|---|---|
| D1 | 0.484 |
| D2 | 0.484 |
| Hex 1 | 1 |
| Hex 2 | 1 |
| Thread 1 | 7/8-14 |
| Thread 2 | 7/8-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
